Ricoh MP CW2201 Service Manual

Paper Transport Fan Motor

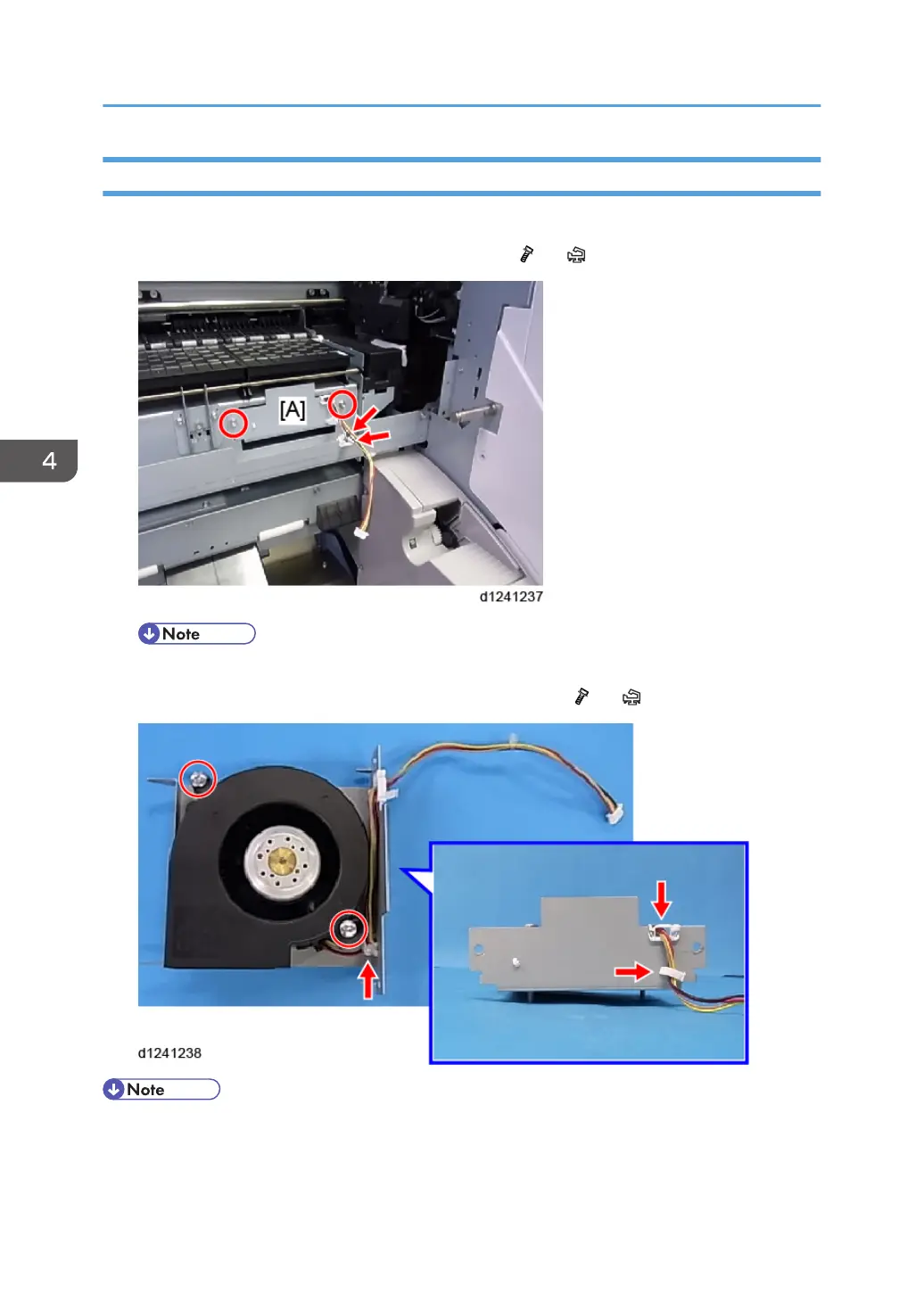

1. Remove the cutter unit (p.369).
2. Disconnect the paper transport fan assembly [A] ( x2, x2).
• The bracket is sealed with the sponge squashed, so pull it out forcibly.
3. Remove the paper transport fan motor from the bracket ( x2, x3).
• To reinstall the paper transport fan motor, align the bosses with the cutout of the main unit and push
it in.
4. Replacement and Adjustment
364
