Reinstallation
• Align the tabs inside the right cover with the cutouts of the main unit and attach the cover.
• To raise the paper holding lever for attaching the right cover, do not raise the lever too much,
which might disengage it from the gear.
Right Upper Cover
Remove
1. Right cover (p.239).

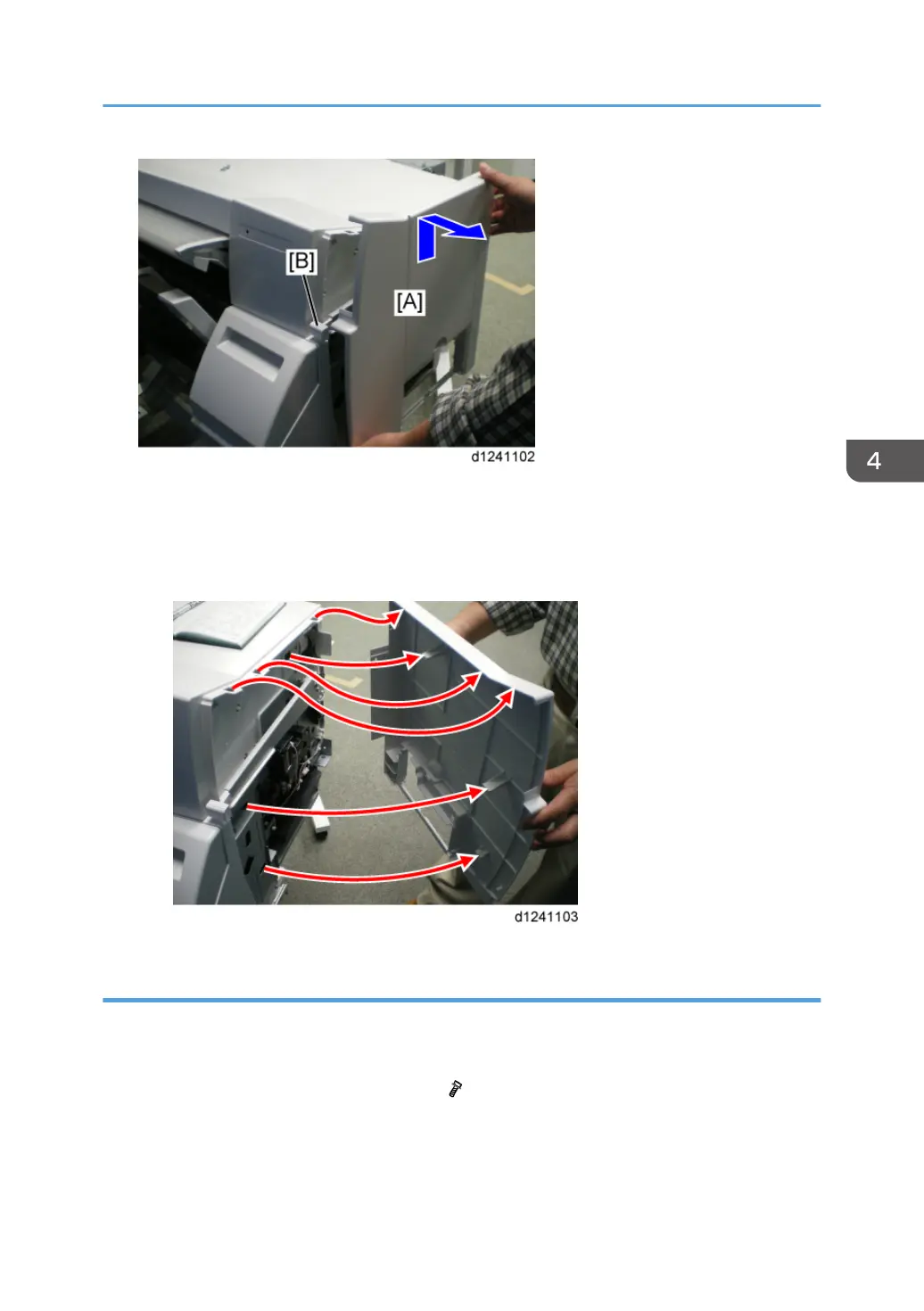

2. Disconnect the cover at the top [A] ( x1).
3. Raise the paper holding lever [B].
