Ricoh MP CW2201 Service Manual

Roll Paper Feed Clutch
Remove
1. Separate the scanner unit and the main unit (p.274).
2. Remove the roll unit (p.314, p.322).
3. Remove the right outer cover, right inner cover, and switch cover (p.342).

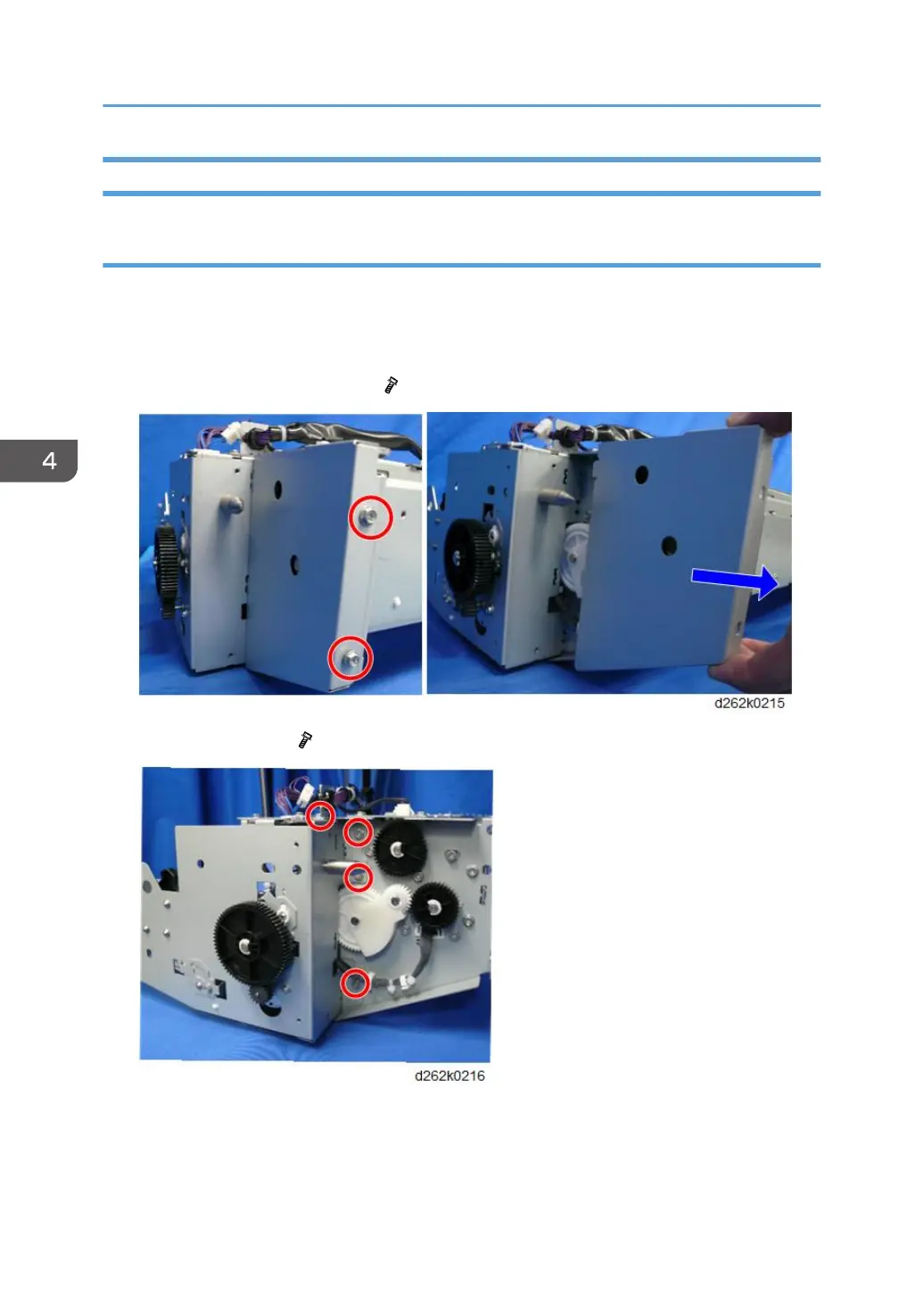

4. Remove the right back bracket ( x2).
5. Remove the screws ( x4).
4. Replacement and Adjustment
336
