Ricoh MP CW2201

To Next Page

To Previous Page

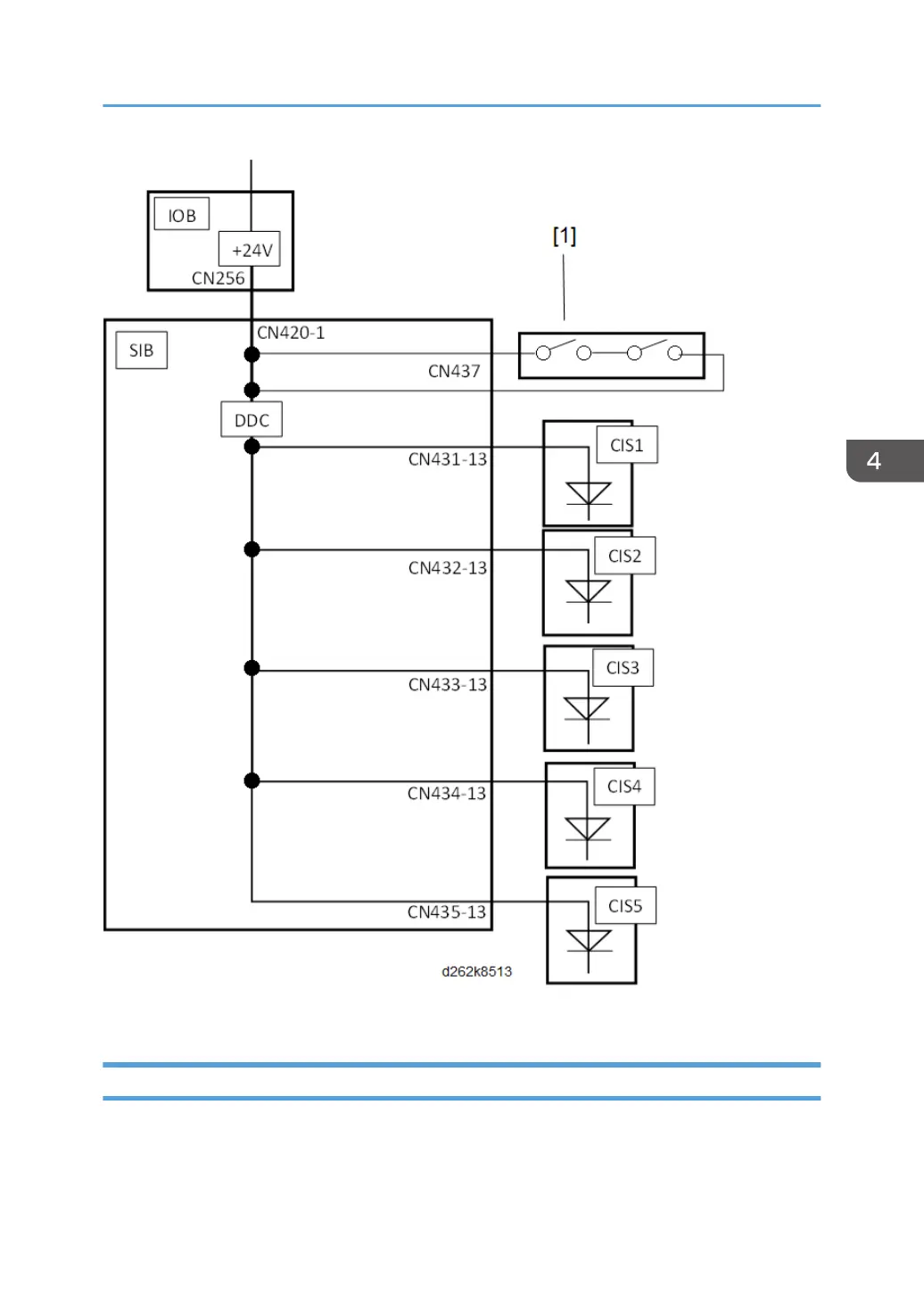

[1]: Scanner Switches

Original Width Sensors, Original Set Sensor

1. Remove the scanner rear cover (p.260).

2. Remove the scanner left cover and scanner right cover (p.260).

Scanner

285
