Ricoh MP CW2201 Service Manual

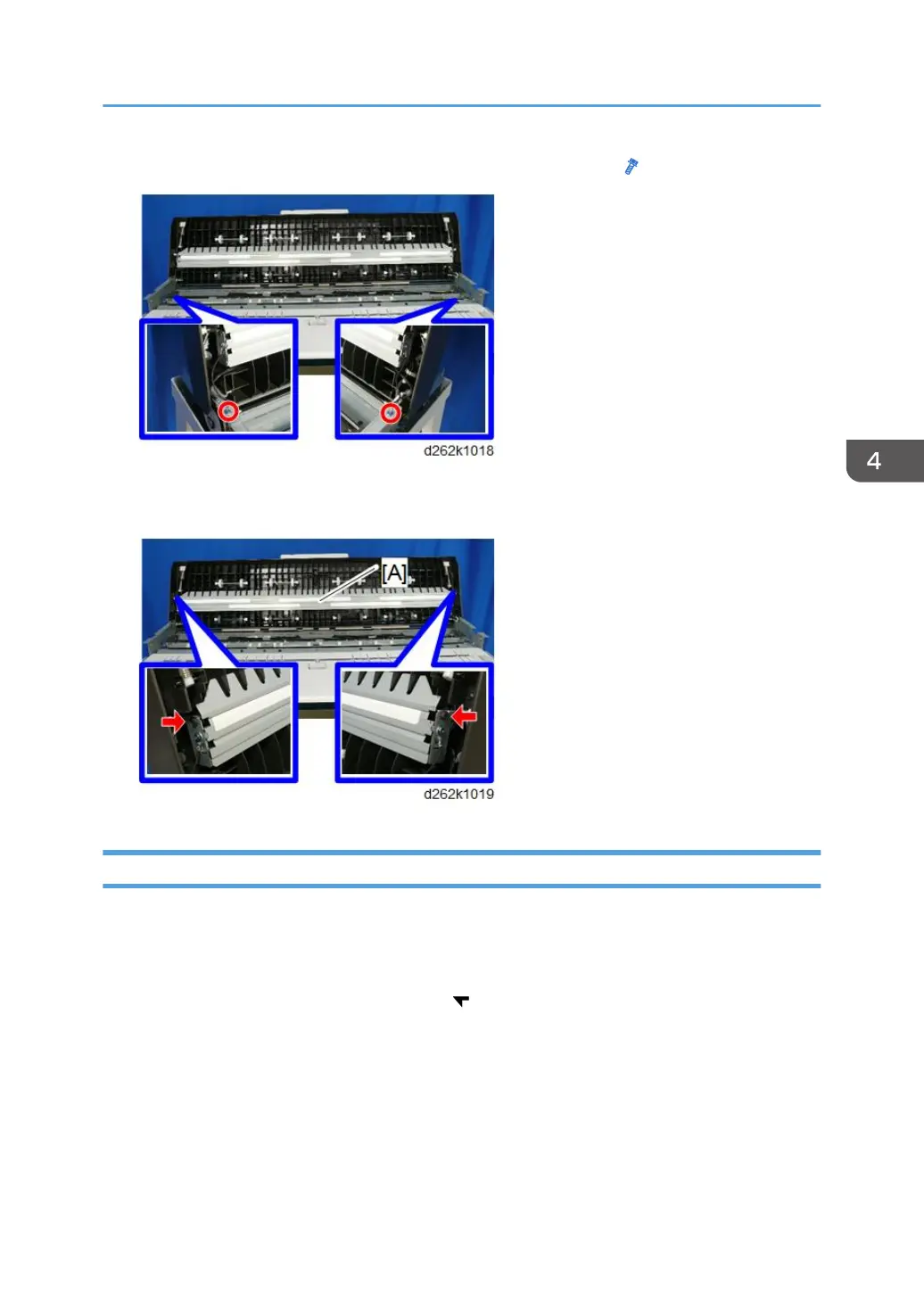

2. Remove the ground wire connected to the white plate bracket. ( x2)
3. While holding the right and left white objects pressed, pull the white plate bracket [A]
toward you to remove it.
Original Stop Switch
1. Raise the top of scanner unit to the full upright position (p.254).
2. The switch cover is fastened by four hooks under the top of scanner unit on the right side.
Use the tip of a small screwdriver to release the hooks [A] of the switch cover and remove the
switch cover on top of the scanner cover [B]. ( x4)
Scanner
311
