Ricoh MP CW2201 Service Manual

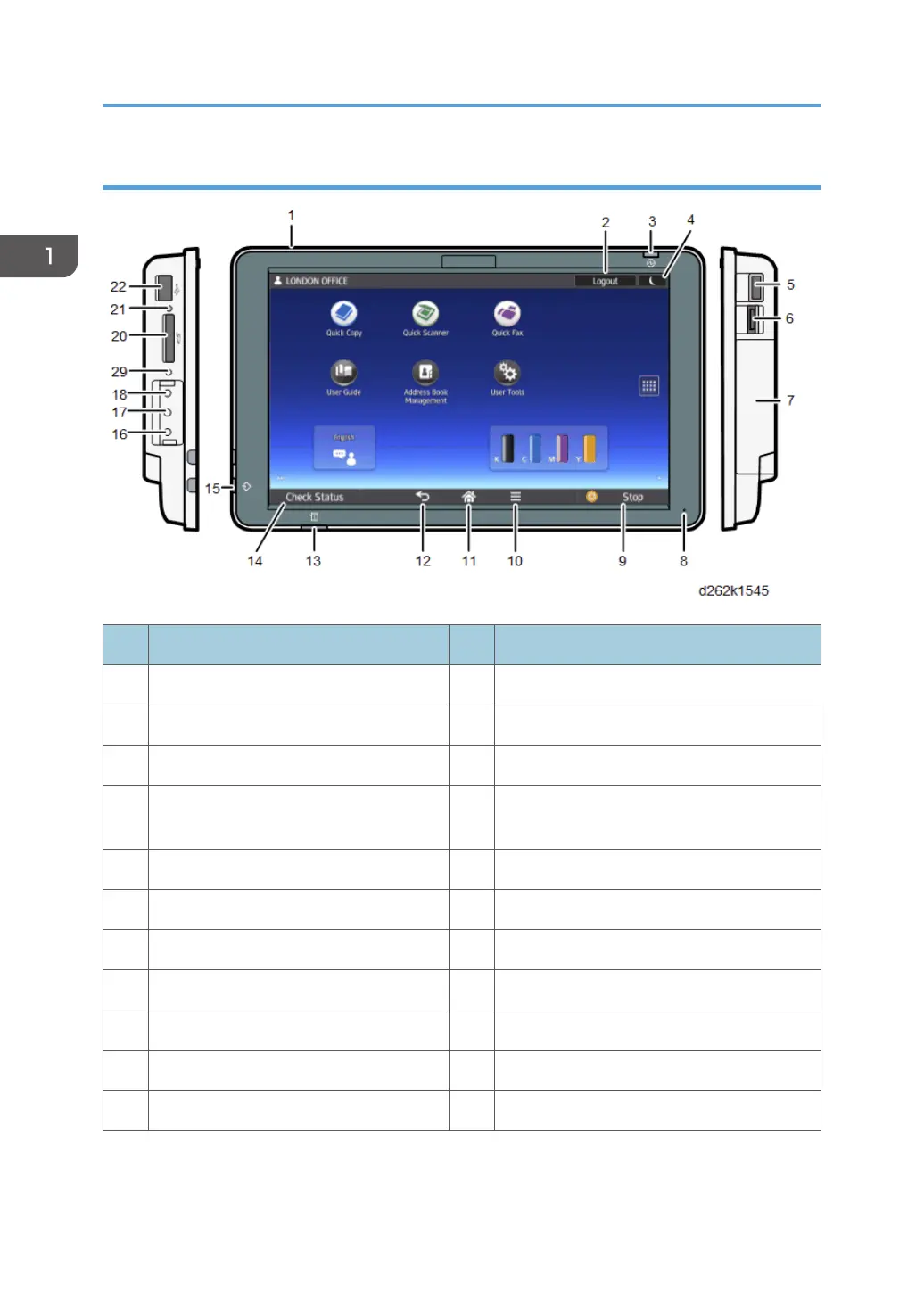

Smart Operation Panel
No. Name No. Name
1 Speaker 12 [Back] key
2 [Login/Logout] key 13 [Check Status] indicator
3 Main power indicator 14 [Check Status] key
4 [Energy Saver] key 15
Data In indicator (facsimile and printer
modes)
5 USB slot for digital cameras 16 Extended Feature key (EX3)
6 HDMI slot 17 Extended Feature key (EX2)
7 USB slot for NFC card readers 18 Extended Feature key (EX1)
8 Microphone 19 Control panel reboot key
9 [Stop] key 20 SD card slot
10 [Menu] key 21 Media access lamp
11 [Home] key 22 USB slot
1. Product Information
36

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
