Ricoh MP CW2201 Service Manual

Paper Transport
• Set the main power switch to OFF and disconnect the power plug from the power outlet before the
procedure below. Operation with the power being supplied may cause electrical shock or defects.

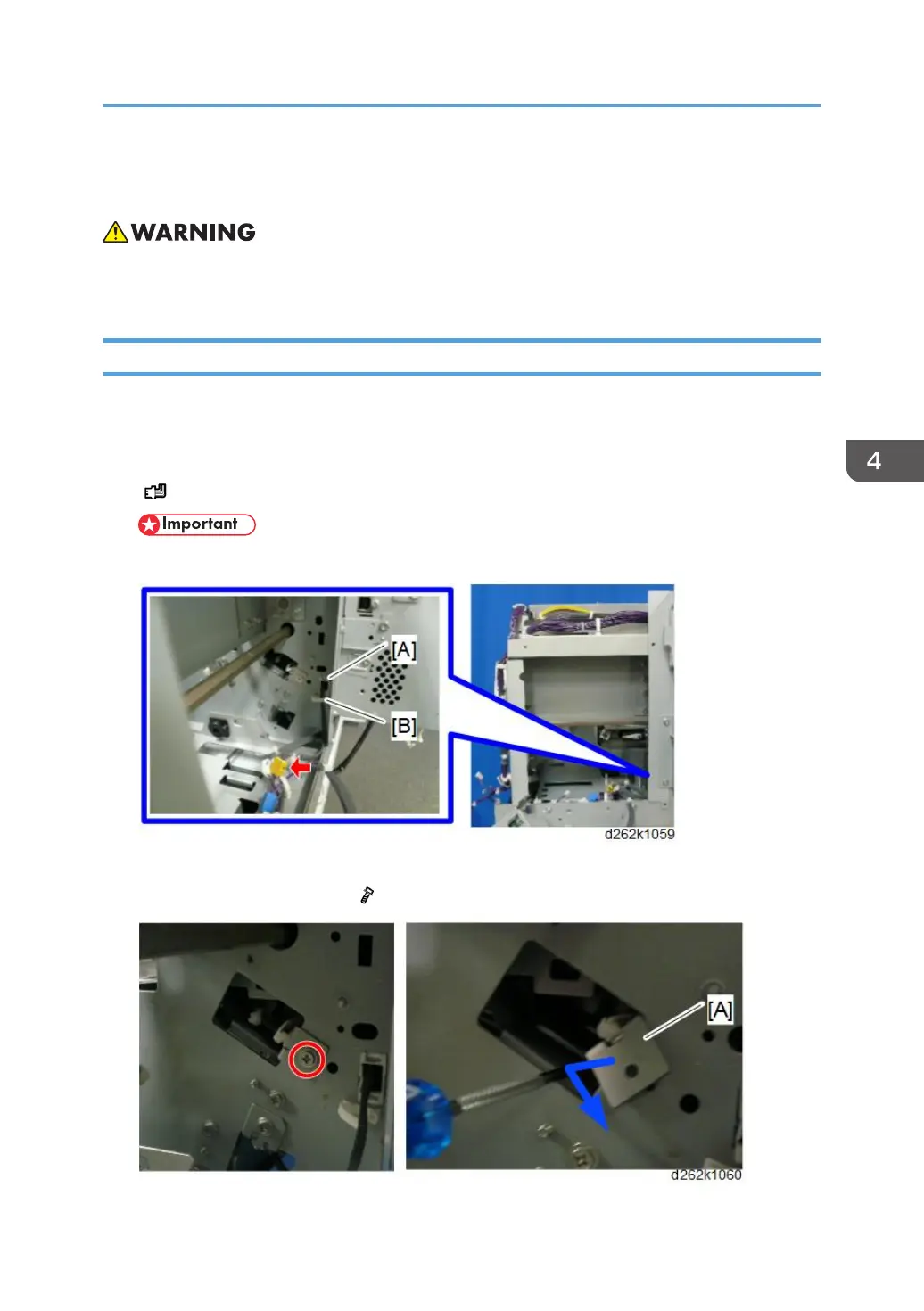

Bypass Sensor
1. Remove the right rear cover (p.247).
2. Remove the auto-nozzle check unit (p.540).
3. Disconnect the harness of the bypass sensor and push it into the hole in the bracket [A]
( x1).
• Do not release the clamp [B]. This is to prevent the harness from falling inside the bracket.
4. Pull away the feeler from the slit using a thin screwdriver, and disconnect the bypass
sensor from the bracket [A] ( x1).
Paper Transport
361
