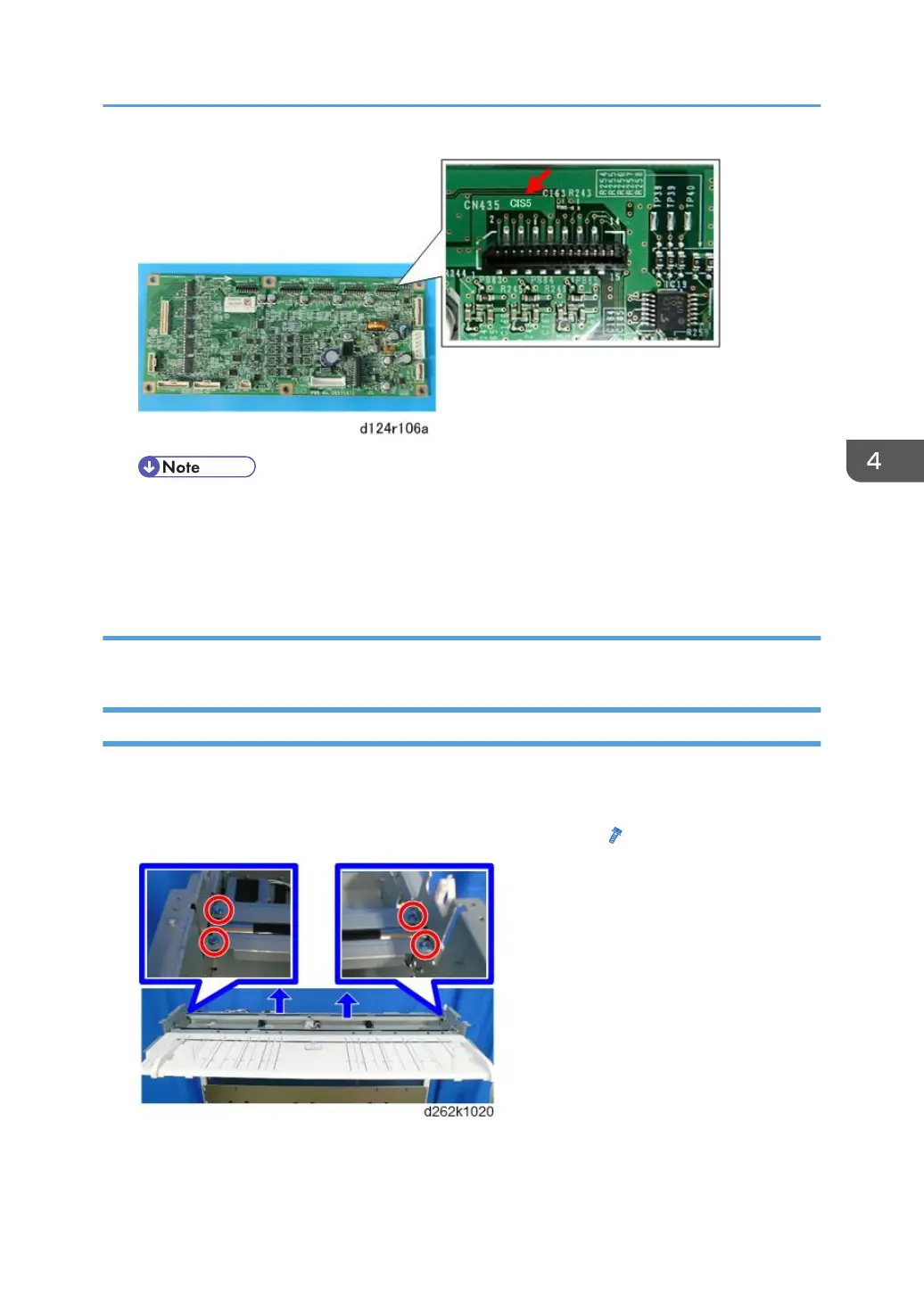

• If the tip of the FFC curls, flatten it and make the connection.
• If the FFC is connected with its tip curled, SC may be displayed or the picture cannot be
copied or scanned properly.
Adjustment
After changing the CIS Unit, perform the CIS adjustment (p.586).
Original Exit Sensor
1. Remove the top of scanner unit (p.255).
2. Remove the CIS unit (p.301).
3. Remove the brackets on both sides of the original exit roller. ( x4)
Scanner
305

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
