Ricoh MP CW2201 Service Manual

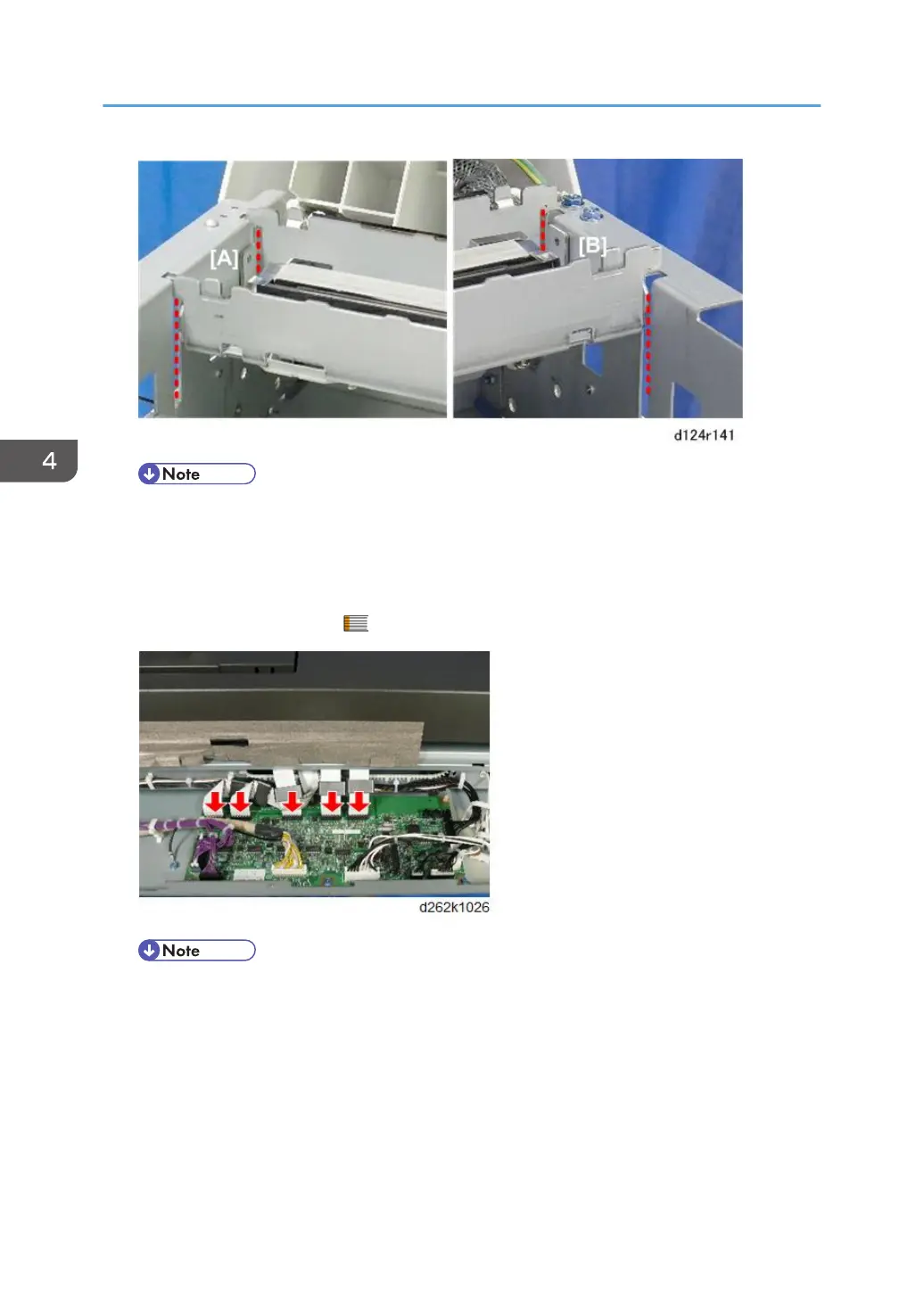

• To attach the CIS unit, fully insert the frames on the both sides to the slits of the main unit and
fasten it with screws.
• Check that there is no dust or dirt on the CIS lenses or exposure glass.
5. At the rear, pull each FFC through the slot using the Allen key.
6. Connect the FFCs to the SIB. ( x5)
• Each FFC connector slot of the SIB is marked with the number of CIS element that it connects
to. The example below shows "CIS 5".
• Connect the FFC with the same number as the number of the SIB connector to the SIB.
4. Replacement and Adjustment
304

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
