Ricoh MP CW2201 Service Manual

• In this model, note that the LEDs are not as close to the USB cable as usual.
Disconnecting the Scanner Cable
Disconnect the scanner cable from the main unit.

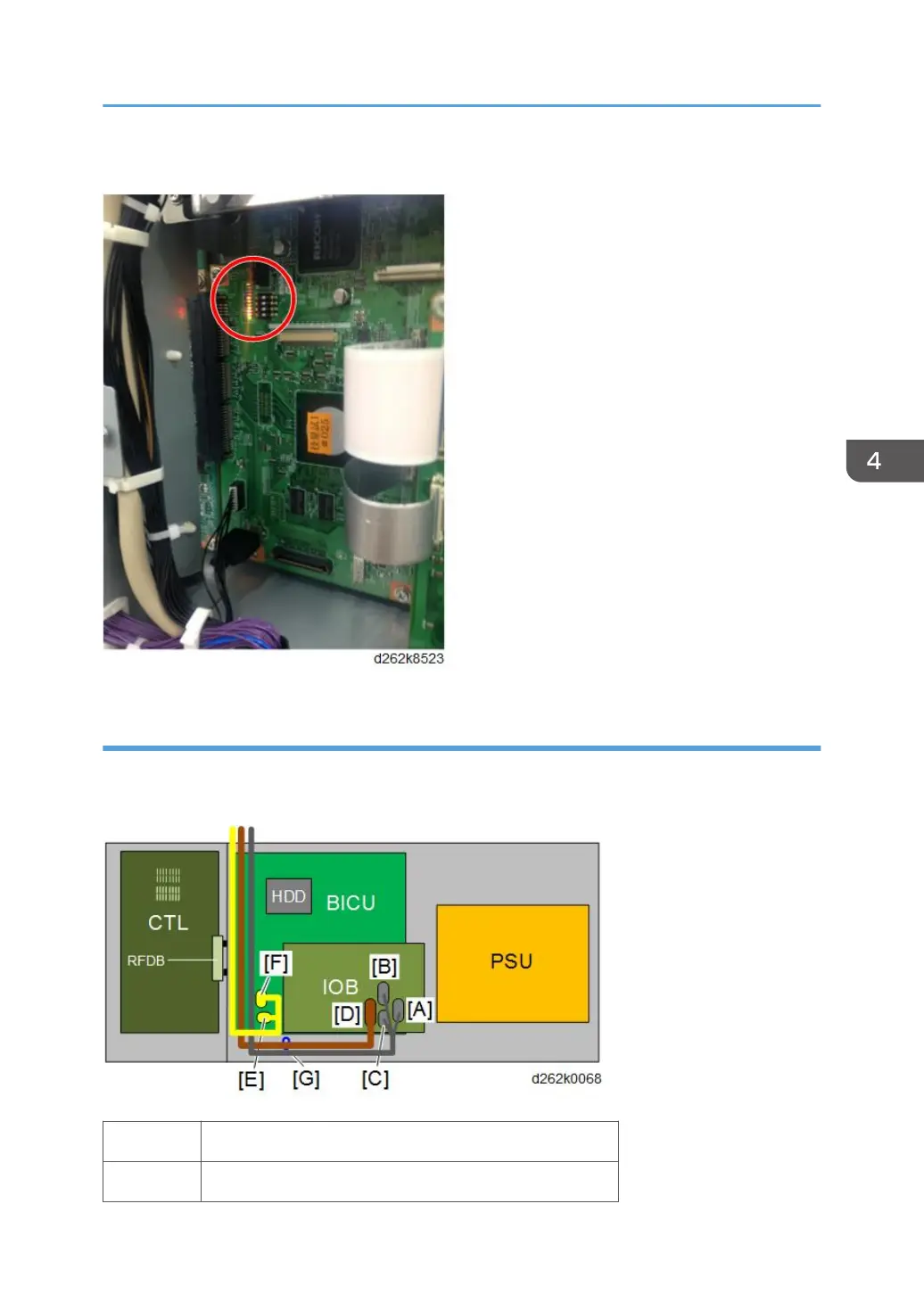

The figure below shows the wiring pattern in the main unit.
[A] IOB CN258
[B] IOB CN259
Common Procedures
275
