Ricoh MP CW2201 Service Manual

[C] IOB CN256
[D] IOB CN257
[E] BICU CN216
[F] BICU CN215
[G] Ground clamp

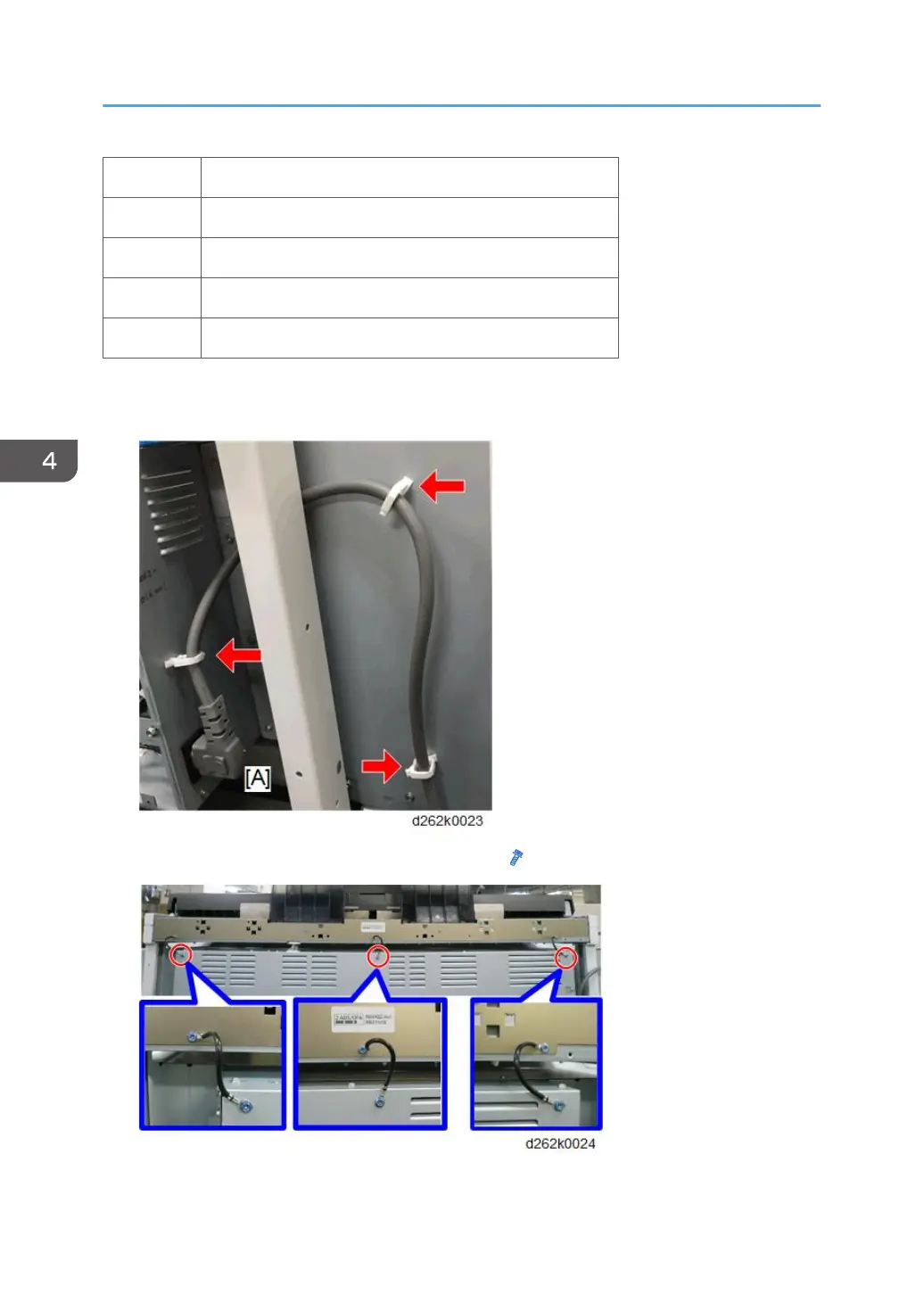

1. Release the clamps in the main unit. Separate the power cord and disconnect the
connector [A] of the power cord.
2. Disconnect the ground wires from the main unit ( x3: 3x6).
3. Remove the rear cover (p.544).
4. Replacement and Adjustment
276
