Ricoh MP CW2201 Service Manual

Connecting the Harnesses

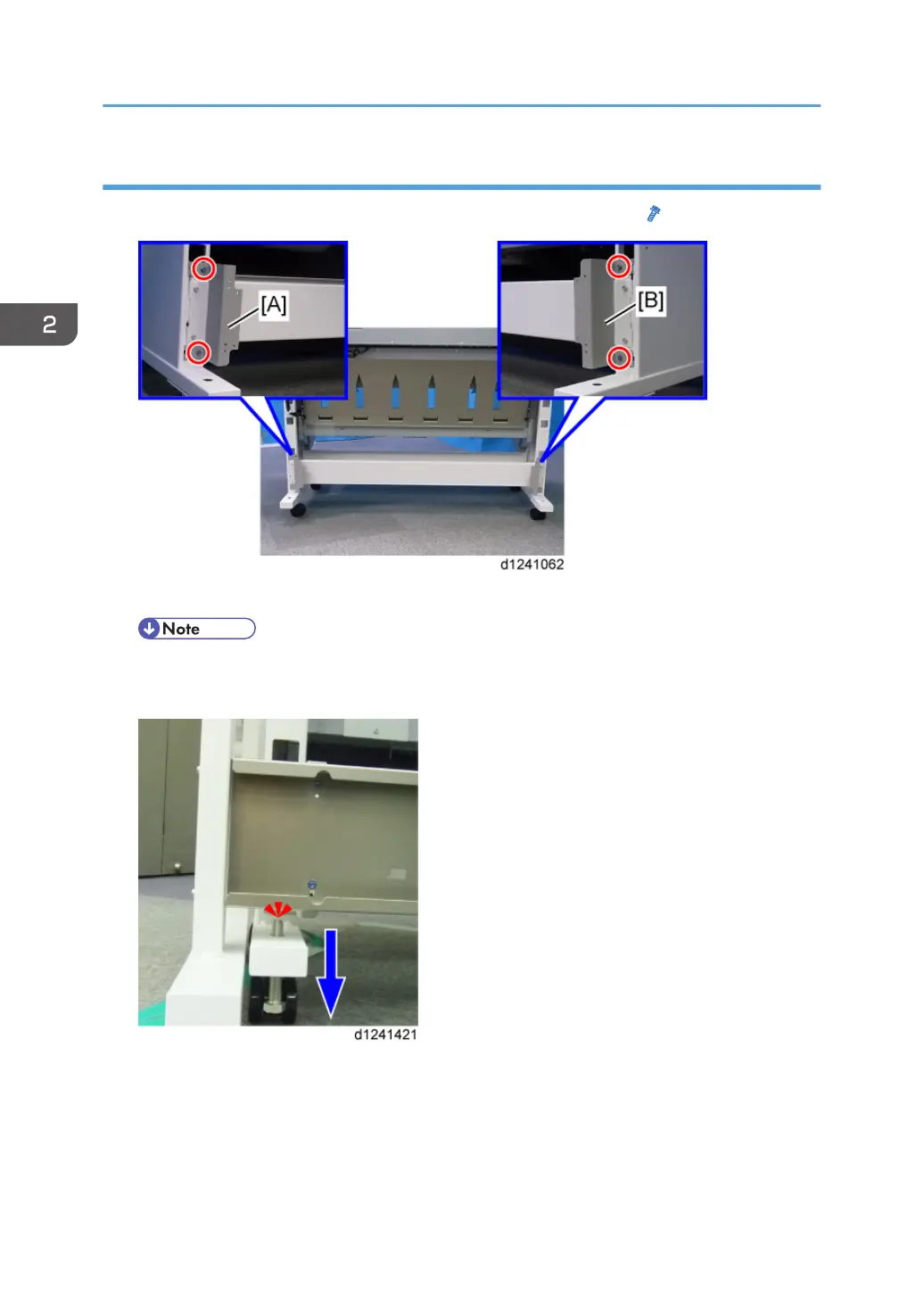

1. At the rear, attach a joint bracket to each side [A] [B] of the stand ( x4 M4x8).
2. Bring the scanner unit and main unit close together.
• Dock the left side of the scanner unit to the back of the main unit.
• Lower the four bolts on the main-unit stand so that the stand does not touch the scanner unit.
2. Installation
104

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
