Ricoh MP CW2201

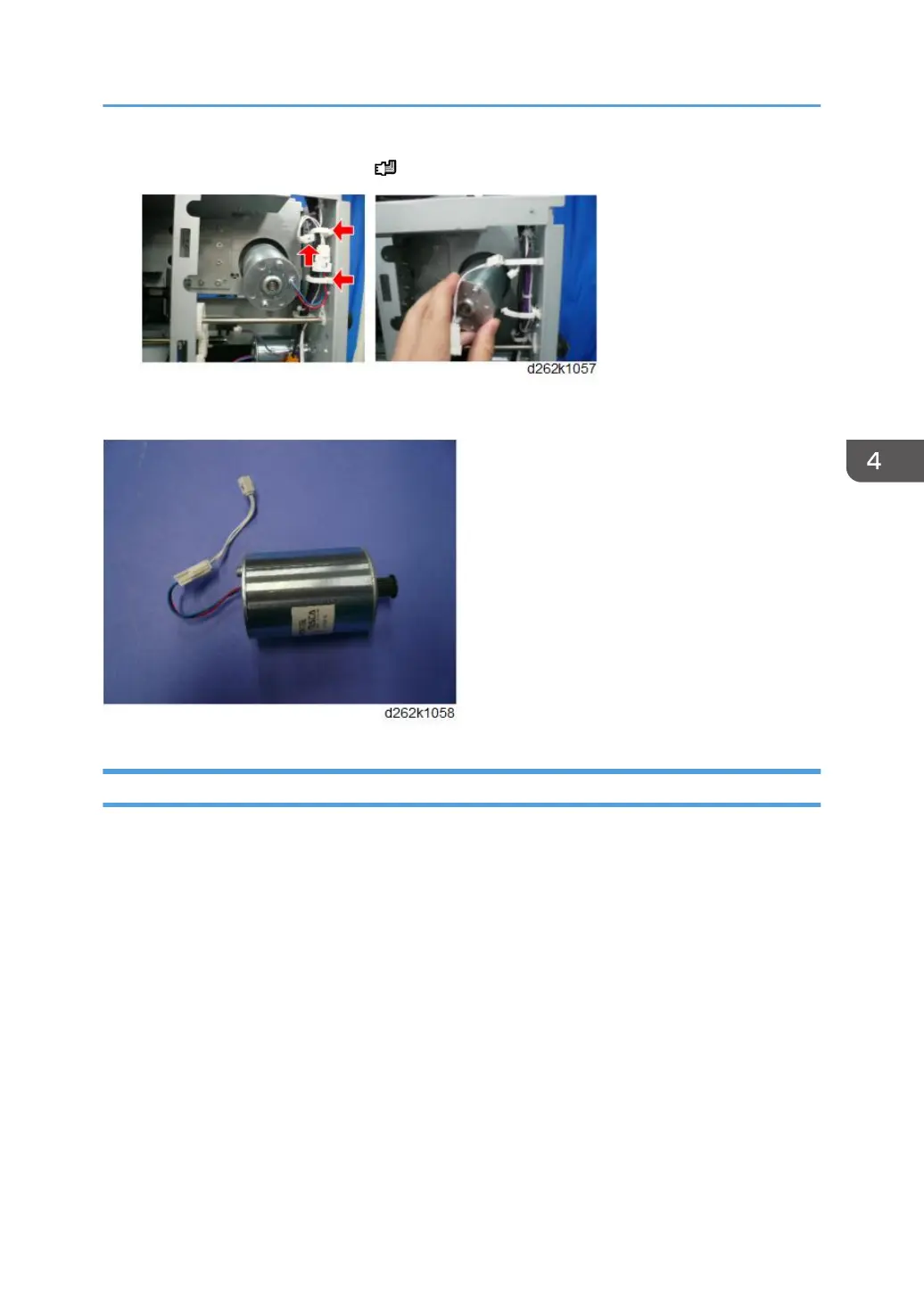

7. Remove the horizontal motor. ( x1)
Horizontal Motor
Horizontal Timing Belt
The horizontal timing belt is located behind the carriage unit. Before changing the horizontal timing belt,
remove the carriage unit (frame).
1. Remove the carriage unit (p.465).
Main Scan
391
