Ricoh MP CW2201 - Cleaning

To Next Page

To Previous Page

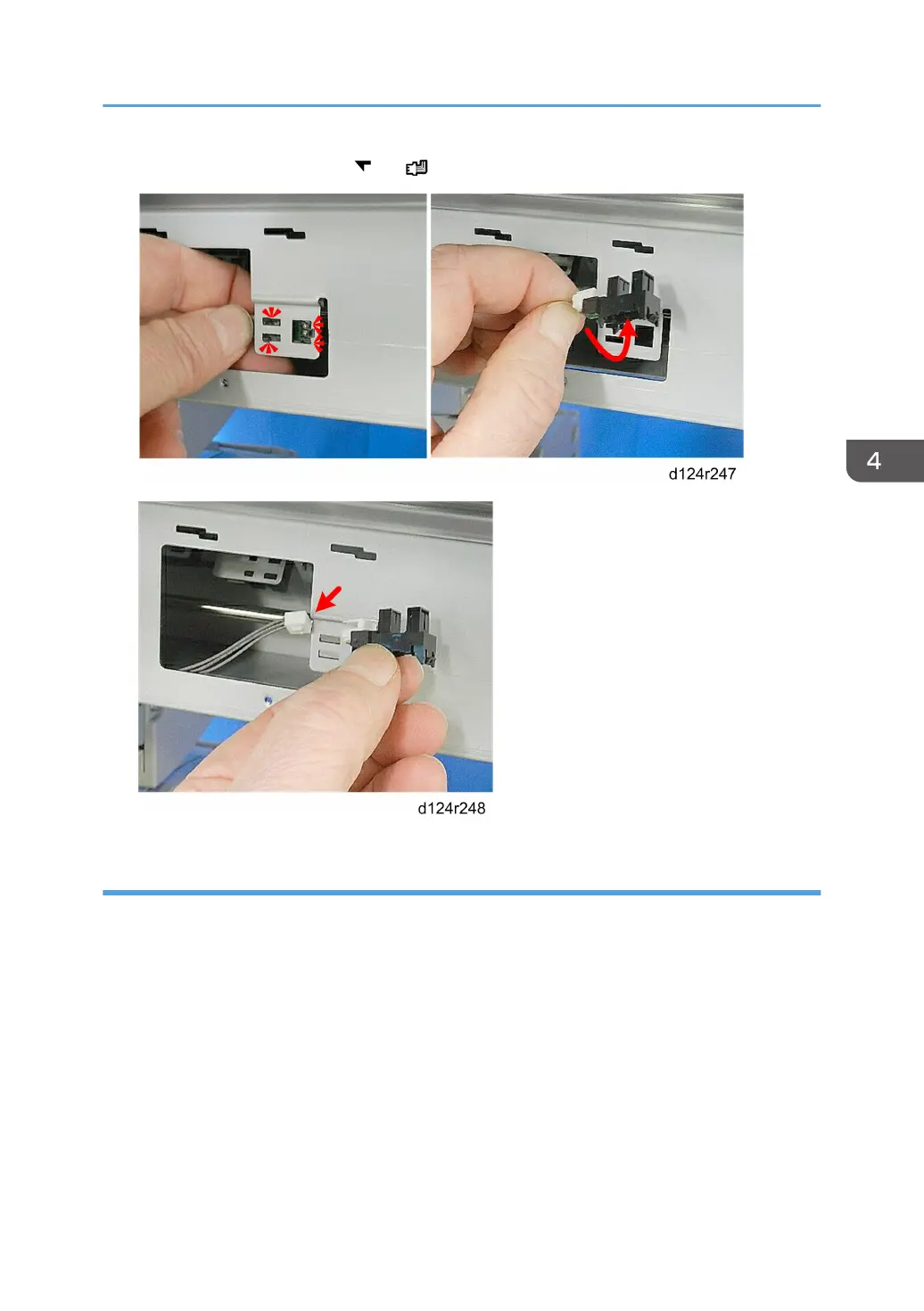

2. Remove the roll end sensor ( x4, x1).

Cleaning

Clean the roll end sensor with a blower brush.

Roll Units

343

Main Page
