Ricoh MP CW2201 Service Manual

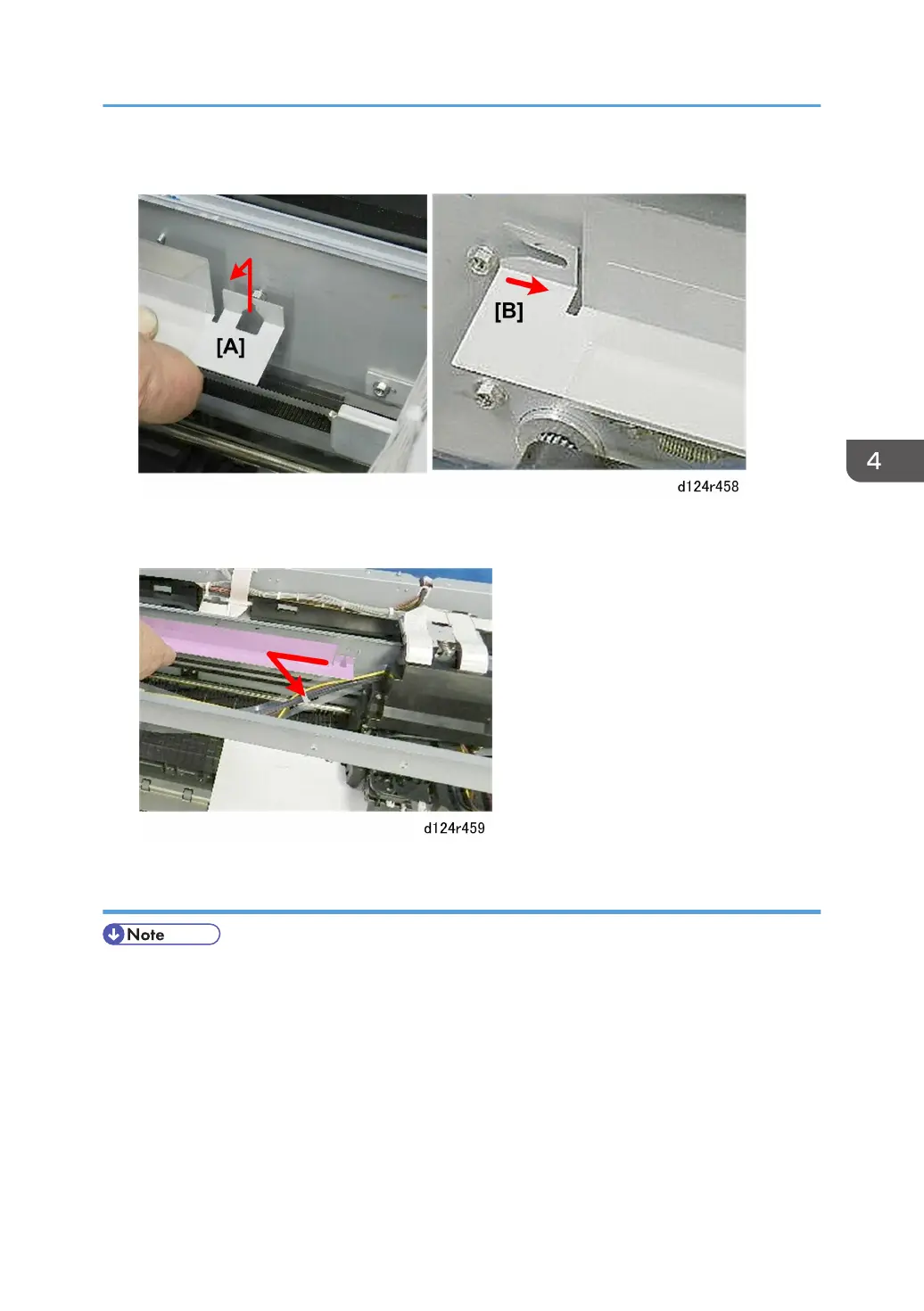

2. Remove the rail from the loosened screws [A] and [B].
3. Move the rail to the left and pull it out from the rear of the carriage unit to take it out from
the main unit.
Horizontal Encoder Sheet Removal
• Do not touch the horizontal encoder sheet with bare hands.
Carriage Unit
477

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
