Ricoh MP CW2201 Service Manual

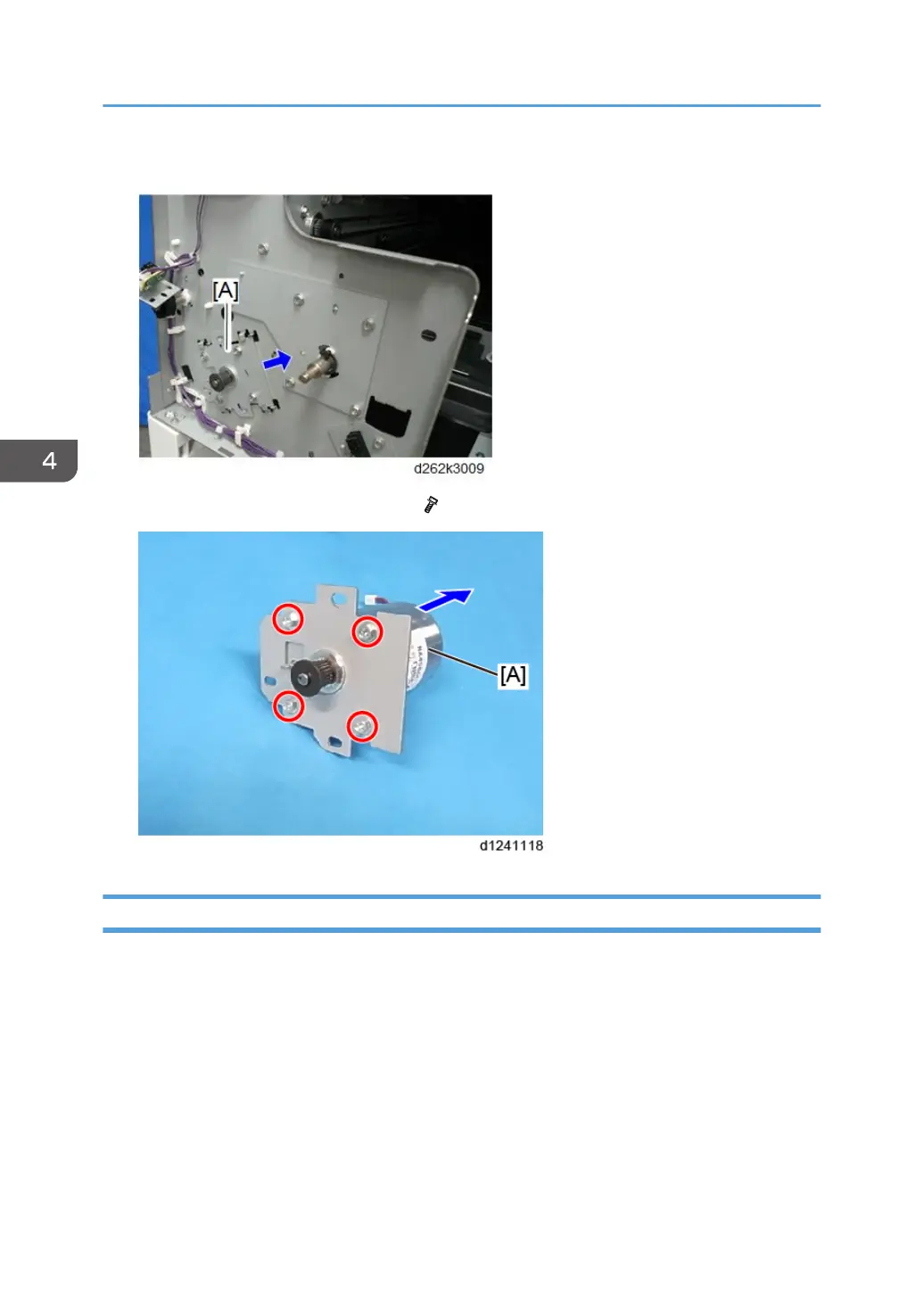

2. Slide and remove the motor bracket [A].
3. Separate the motor and bracket [A] ( x4).
Bypass Stopper Clutch Sensor
Preparations
Remove:
• Left cover (p.234)
• Left rear cover (p.248)
4. Replacement and Adjustment
400
