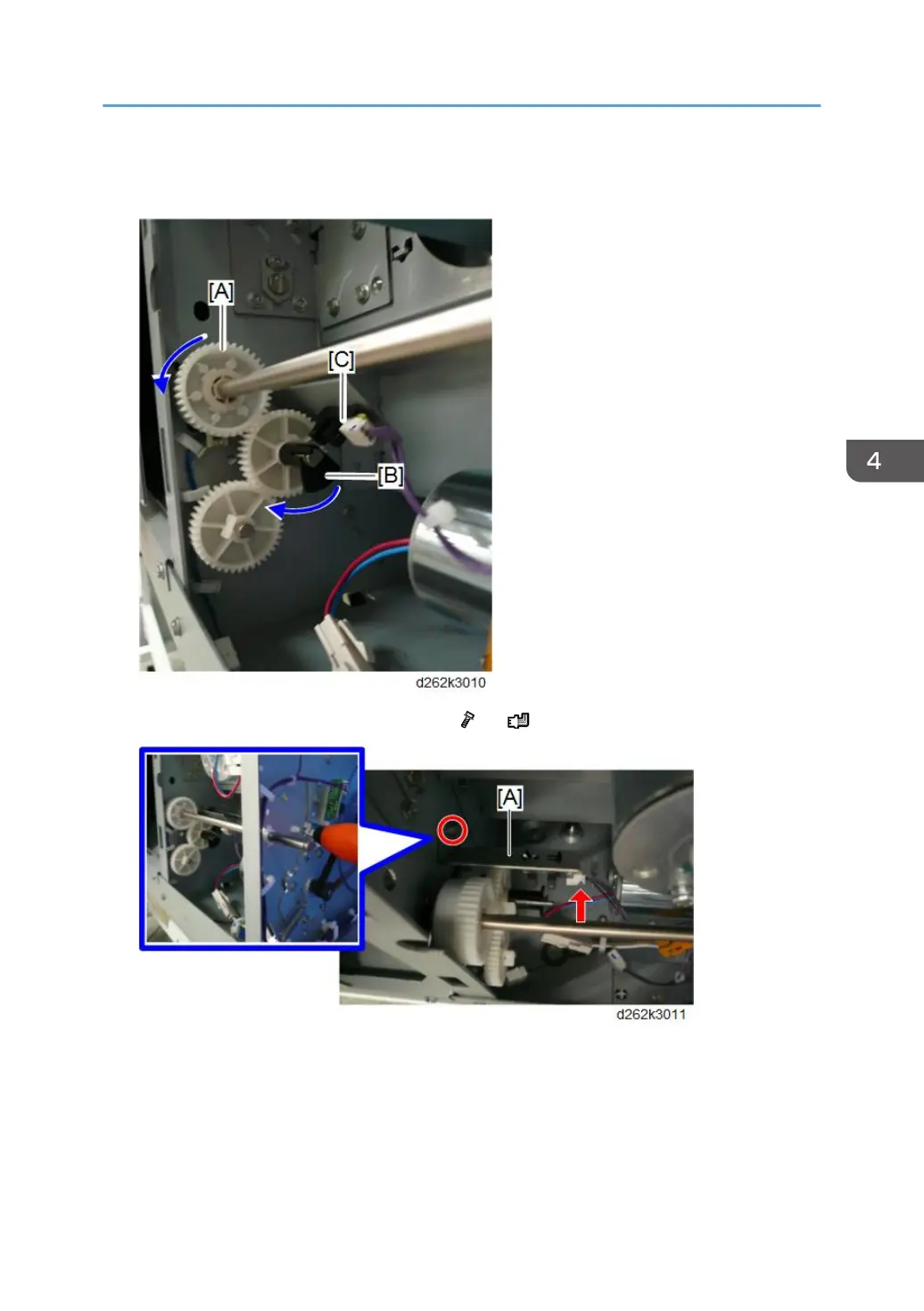

1. Turn the gear [A] counterclockwise and separate the sensor filler [B] from the bypass

stopper clutch sensor [C].

2. Bypass stopper clutch sensor bracket [A] ( x2, x1).
