Ricoh MP CW2201 Service Manual

No. Item
7 Suction cap actuator
8 Suction cap sensor
9 Color print head caps (K2, Y1M1, C, Y2M2)
10 Lift lever (K2, Y1M1, C, Y2M2)
11 Carriage stopper
12 Lift sensor
13 Lift sensor actuator
14 Lift motor
15 Cap pads (K2, C, YM)

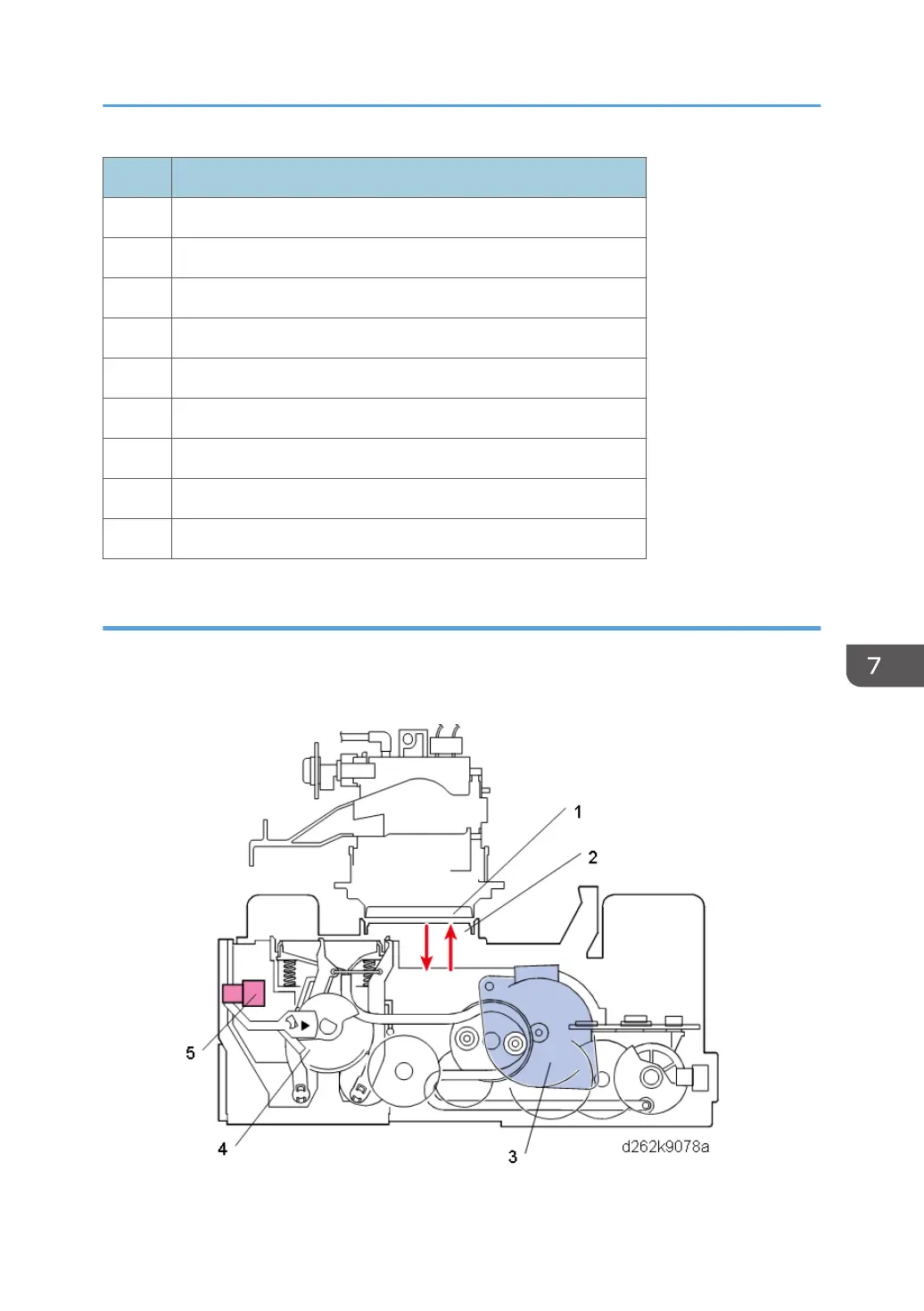

Capping/Uncapping
The K1 print head and the K2, C, YM print heads are uncapped and capped at the same time.
K1 Print Head Uncapping/Capping
Printing
855
