Ricoh MP CW2201 Service Manual

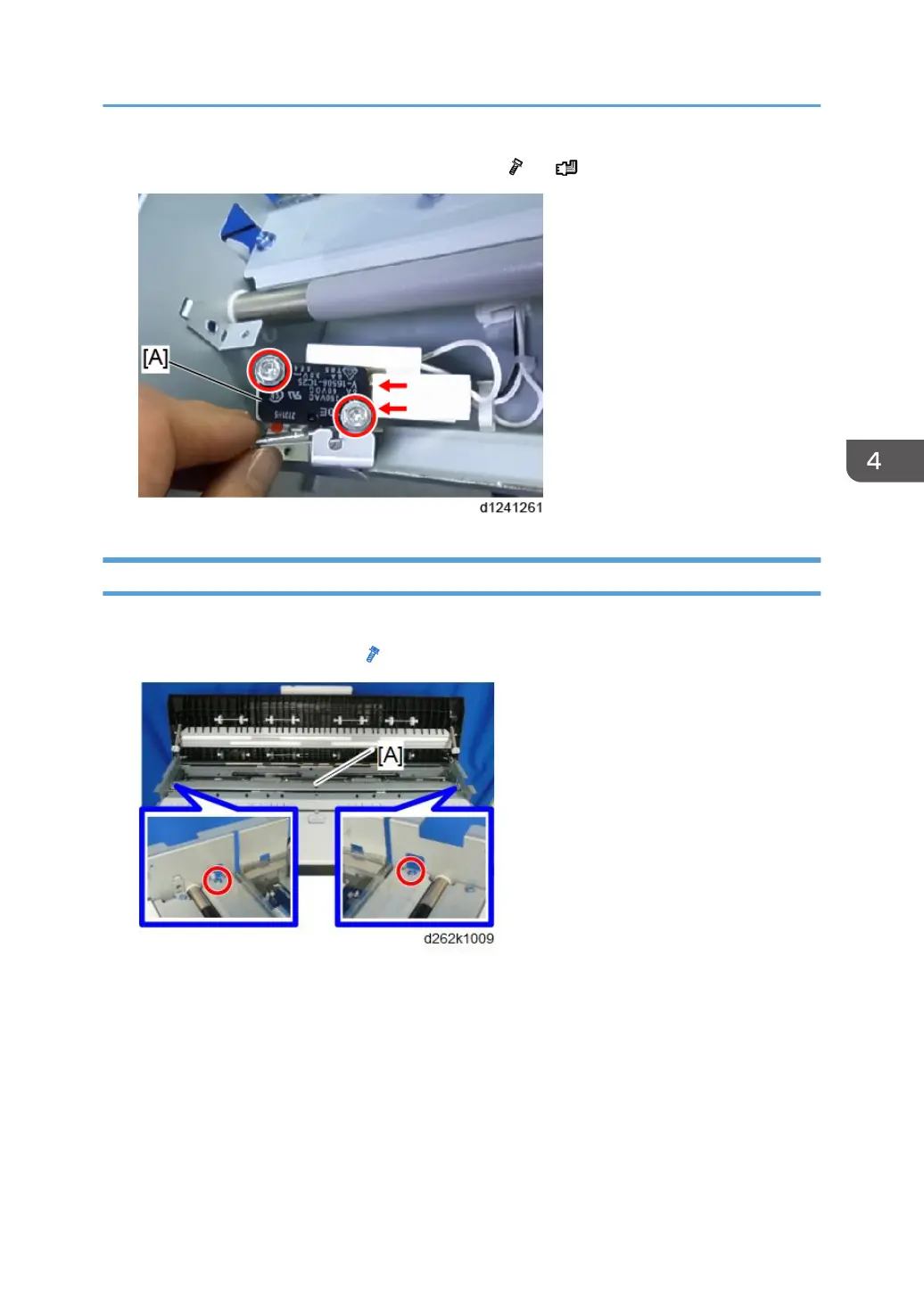

7. Separate the bracket and the safety switch [A]. ( x2, x2)
Original Registration Sensor
1. Raise the top of scanner unit to the full upright position (p.254).
2. Remove the guide plate [A]. ( x2)
Scanner
289

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
