Ricoh MP CW2201 Service Manual

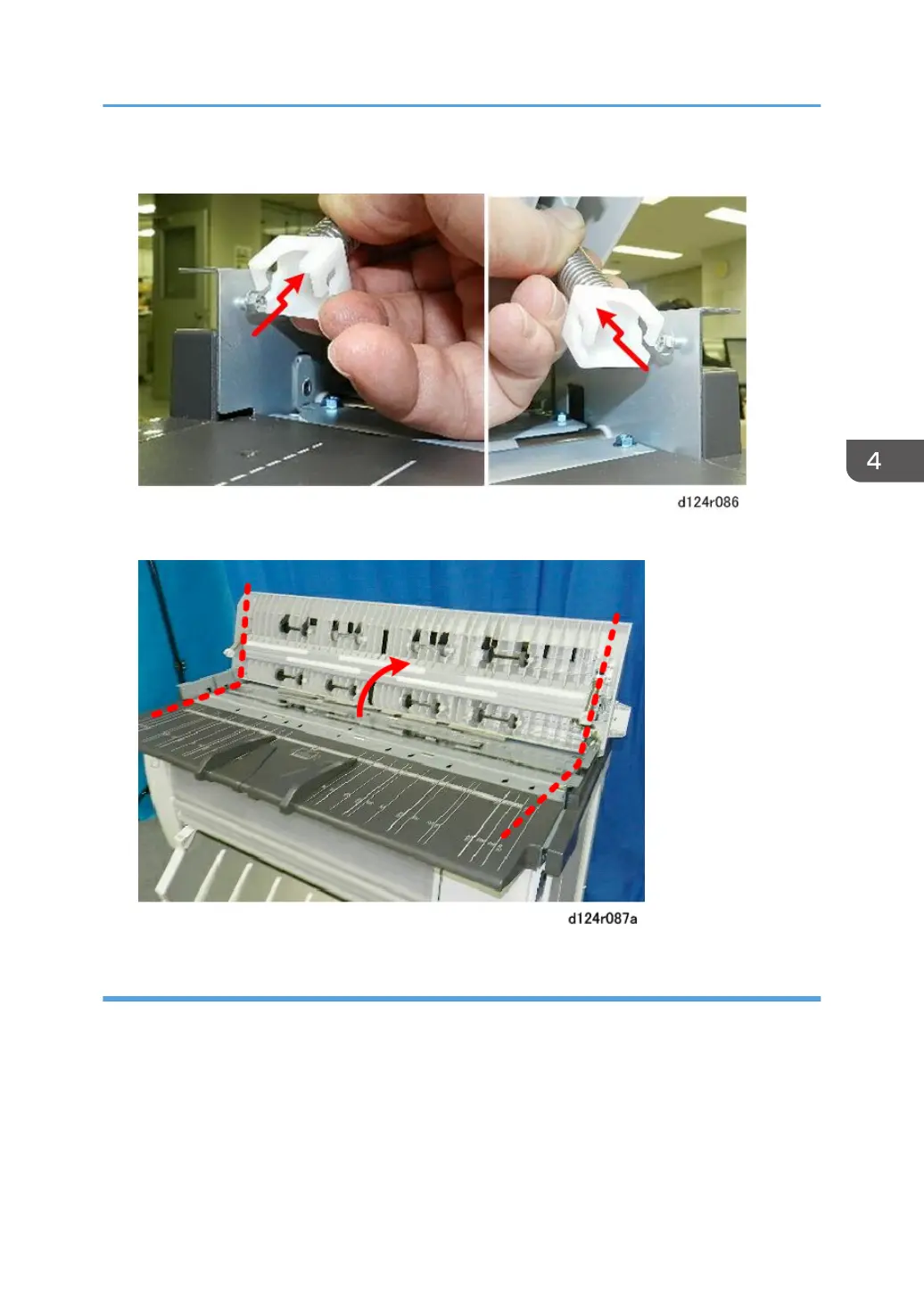

3. Disconnect the hinges from the post screws. Do not remove the screws.
4. Raise the scanner to the full upright position.
Scanner Upper Cover
1. Remove the scanner rear cover (p.260).
2. Remove the scanner left cover and scanner right cover (p.260).
3. Raise the scanner unit to the full upright position (p.254).
Common Procedures
255

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
