Ricoh MP CW2201 Service Manual

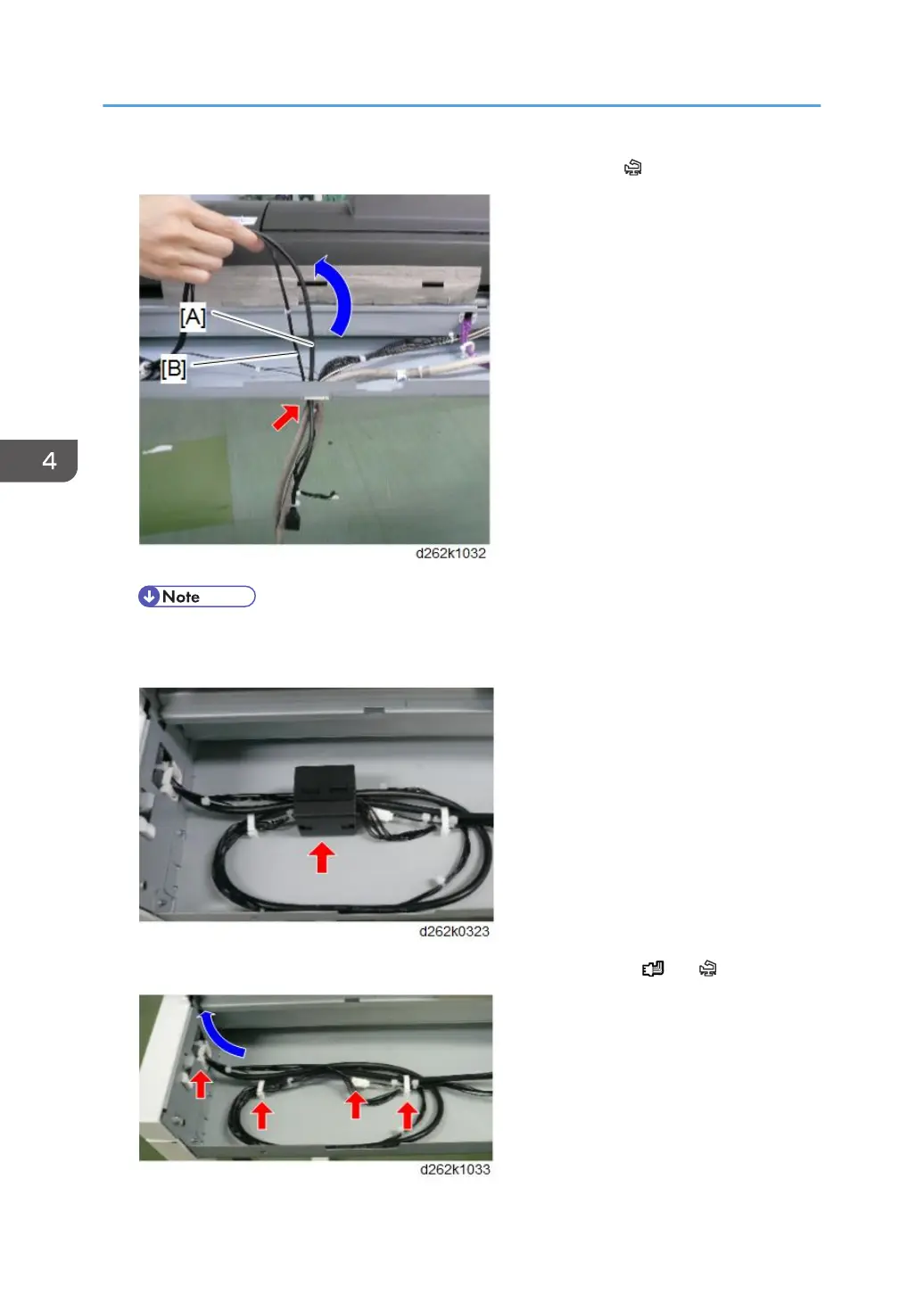

4. Remove the USB cable [A] and USB power supply harness [B]. ( x1)
• Release the clamp and pass the cable beneath the bracket.
5. Remove the ferrite core.
6. Remove the clamps and connector, and pull away the harnesses. ( x1, x3)
4. Replacement and Adjustment
256

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
