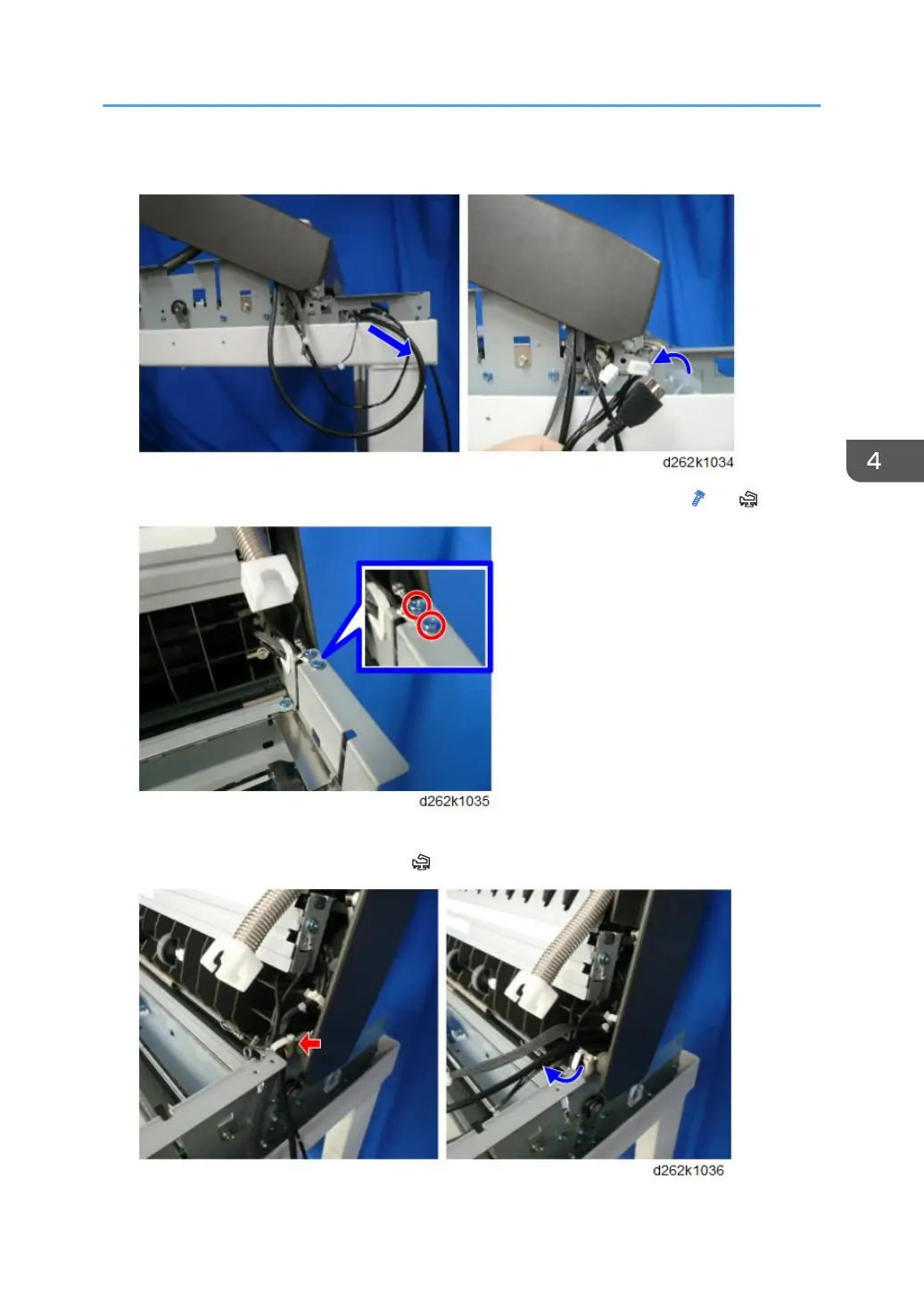

7. Pull out the harness from the cutout of the right bracket of the main unit.
8. Remove the ground wire from the right hinge of the top of scanner unit. ( x2, x2)
9. Remove the ground wire from the right hinge of the top of scanner unit, release the
clamp, and pull away the harness. ( x1)
Common Procedures
257
