Ricoh MP CW2201 Service Manual

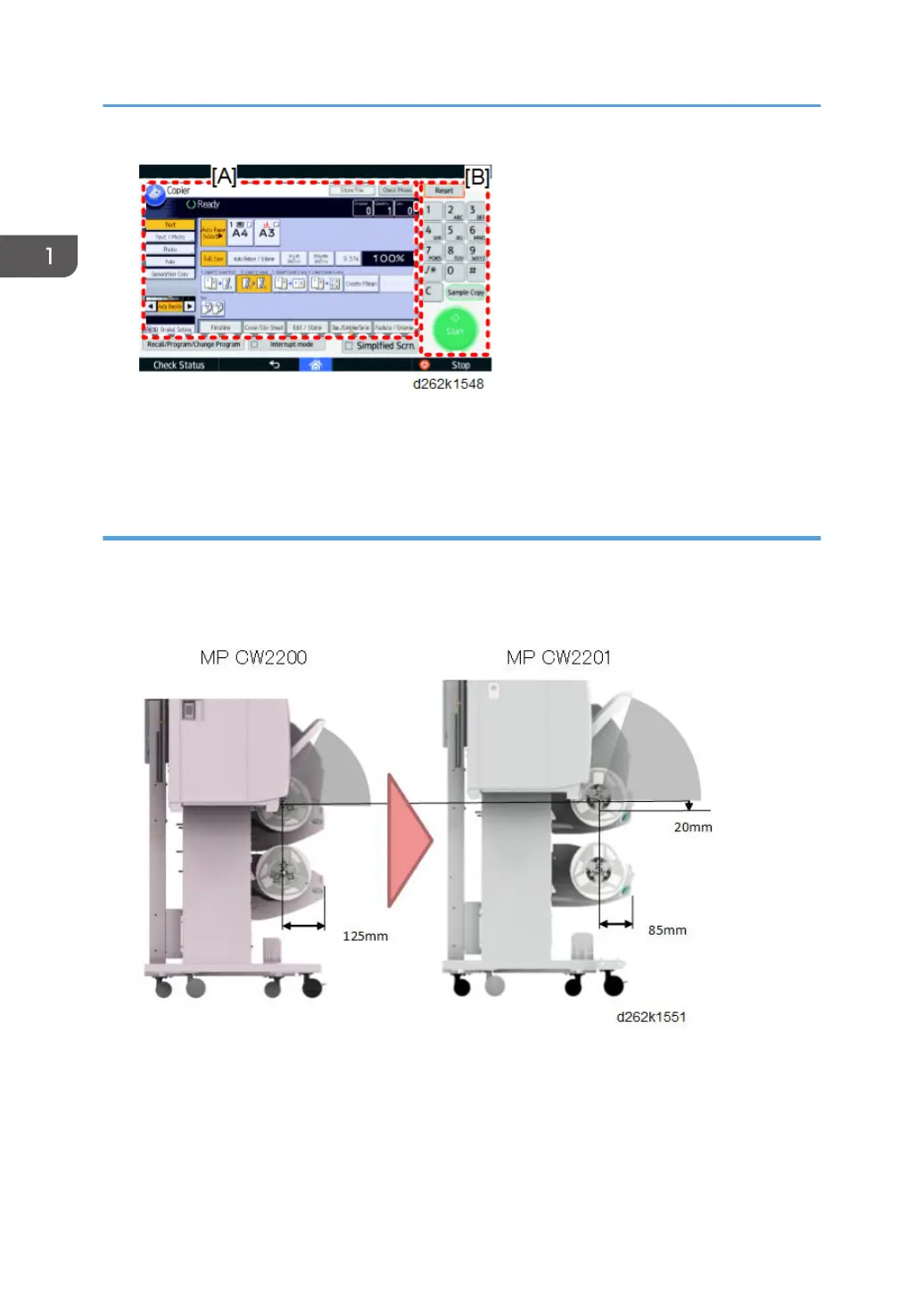

A:Classic UI area is same as MP CW2200's operation panel display.
B:Numeric key area is integrated into touch display.
Roll Paper Setting
Roll Paper Setting Position
Roll paper setting position of MP CW2201 changes by 40mm forward and 20mm low compared
to MP CW2200. It can be set the roll paper without having to bend over too much.
New Paper Spool
The levers do not have to be lowered for 2-inch core. The procedure is same for 2-inch core and
3-inch core paper rolls.
1. Product Information
38

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
