Ricoh MP CW2201 Service Manual

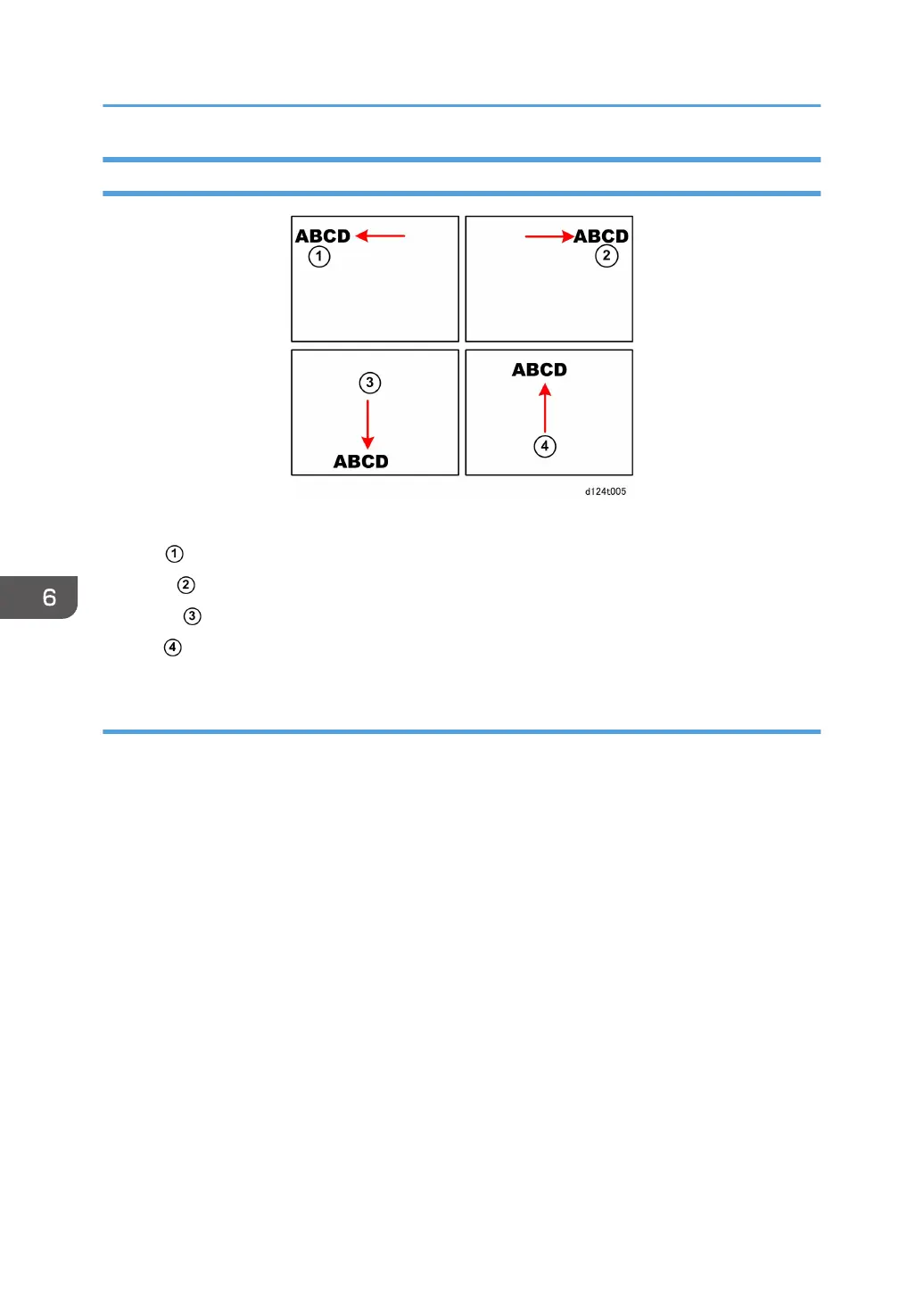

Text Shifted Out of Position
Text misaligned, shifted too far
• Left
• Right
• Down
• Up
Obstructed, Faulty Paper Feed
• Inspect the horizontal encoder strip for dirt or damage. Clean or replace horizontal encoder strip.
• Inspect the vertical encoder wheel for dirt or damage. Clean or replace vertical encoder wheel.
• Inspect the platen for shreds of paper or other obstacles.
• Inspect the platen plates for dirt or damage. Clean or replace the platen plates.
6. Troubleshooting
726
