Controller Board

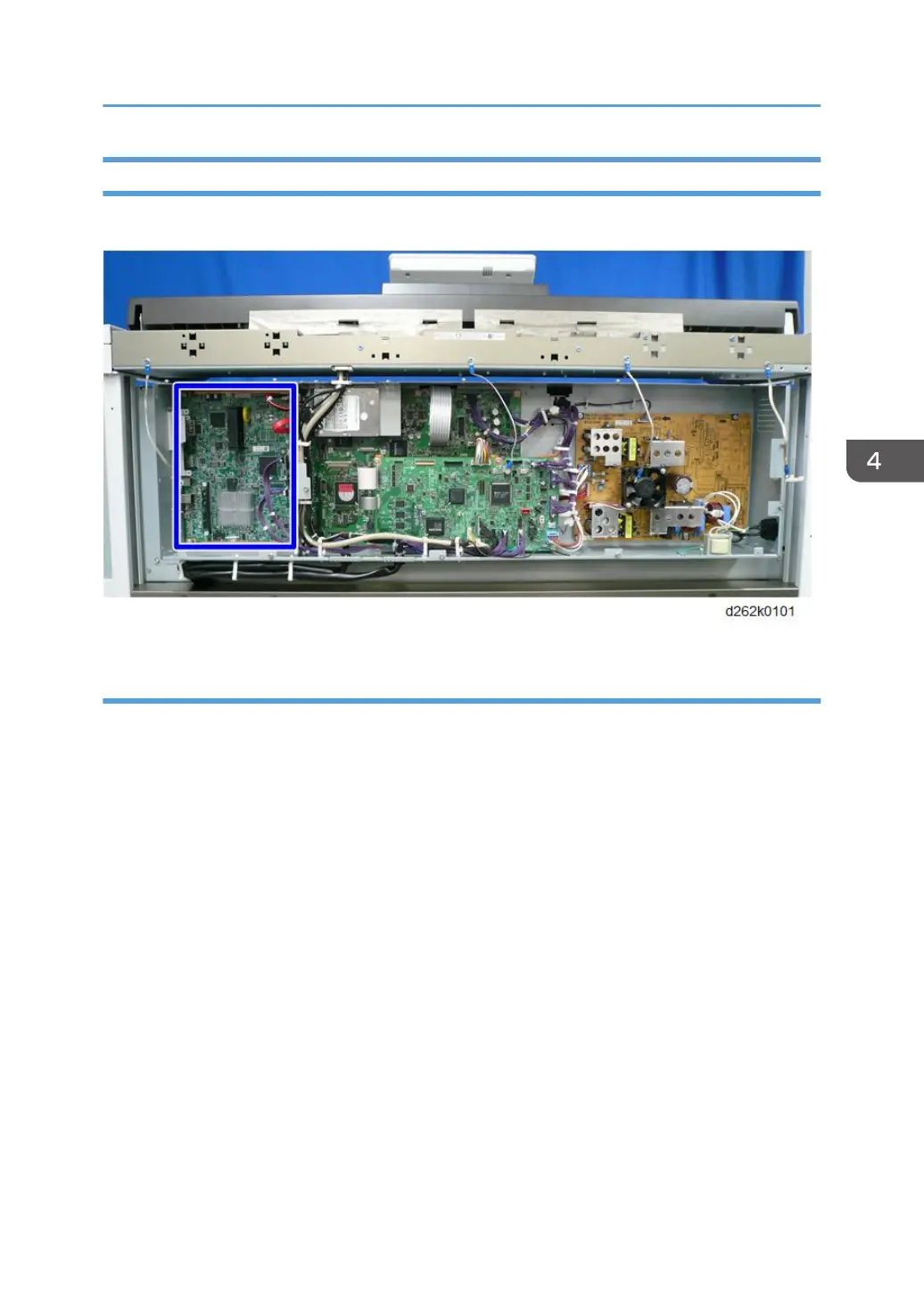

The blue frame shows the location of the controller board.

Remove

1. Rear cover (p.544) .

Electrical Components

553
