Ricoh MP CW2201 Service Manual

• The left and right latches easily come off the top of scanner unit. Check that the latches are
attached on the top of scanner unit soon after removing it.

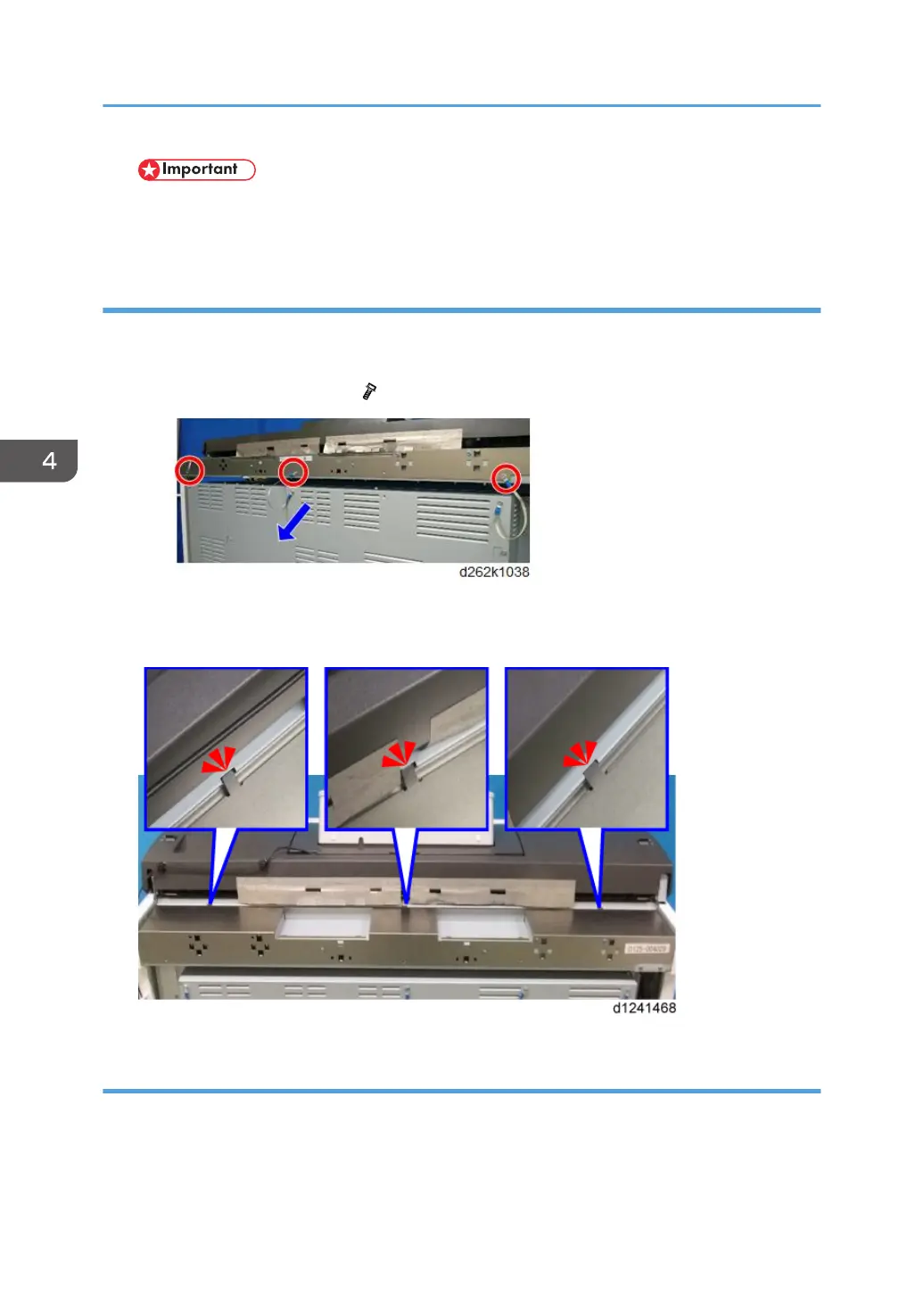

Scanner Rear Cover
Remove
1. Remove the screws of the three ground wires connected to the PCB box and remove
the scanner rear cover. ( x3)
Precaution
Set the three guides of the scanner rear cover to the cutout on the rear of the scanner unit.
Scanner Left Cover, Scanner Right Cover
1. Remove the scanner rear cover. (Scanner Rear Cover)
2. Open the top of scanner unit [A].
4. Replacement and Adjustment
260

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
