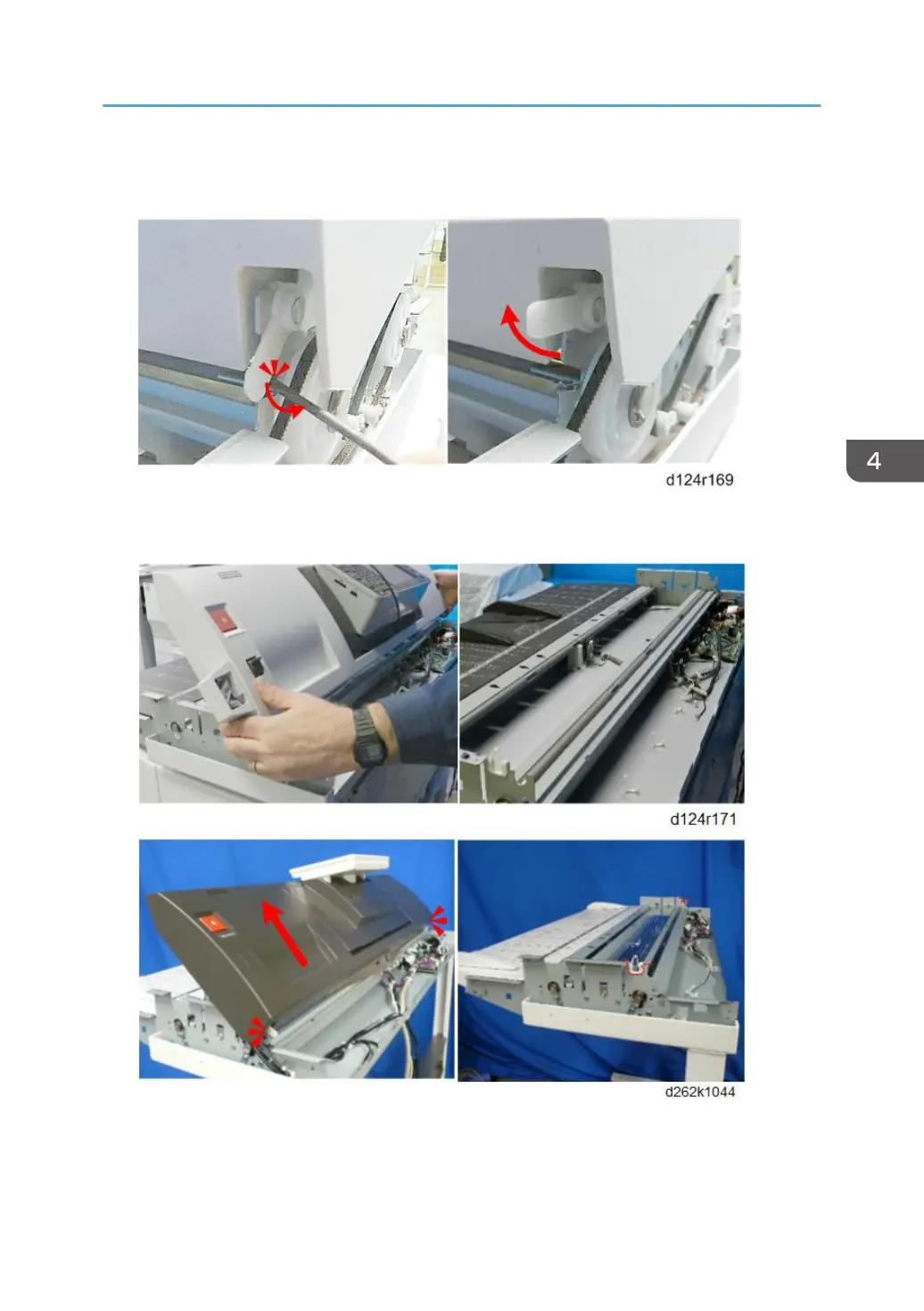

12. Release the boss of the left latch of the top of scanner unit on the rear of the main unit and
pull the latch up.
13. While holding the left and right latches pushed, slightly tilt the top of scanner unit and pull
it up to remove.
Common Procedures
259
