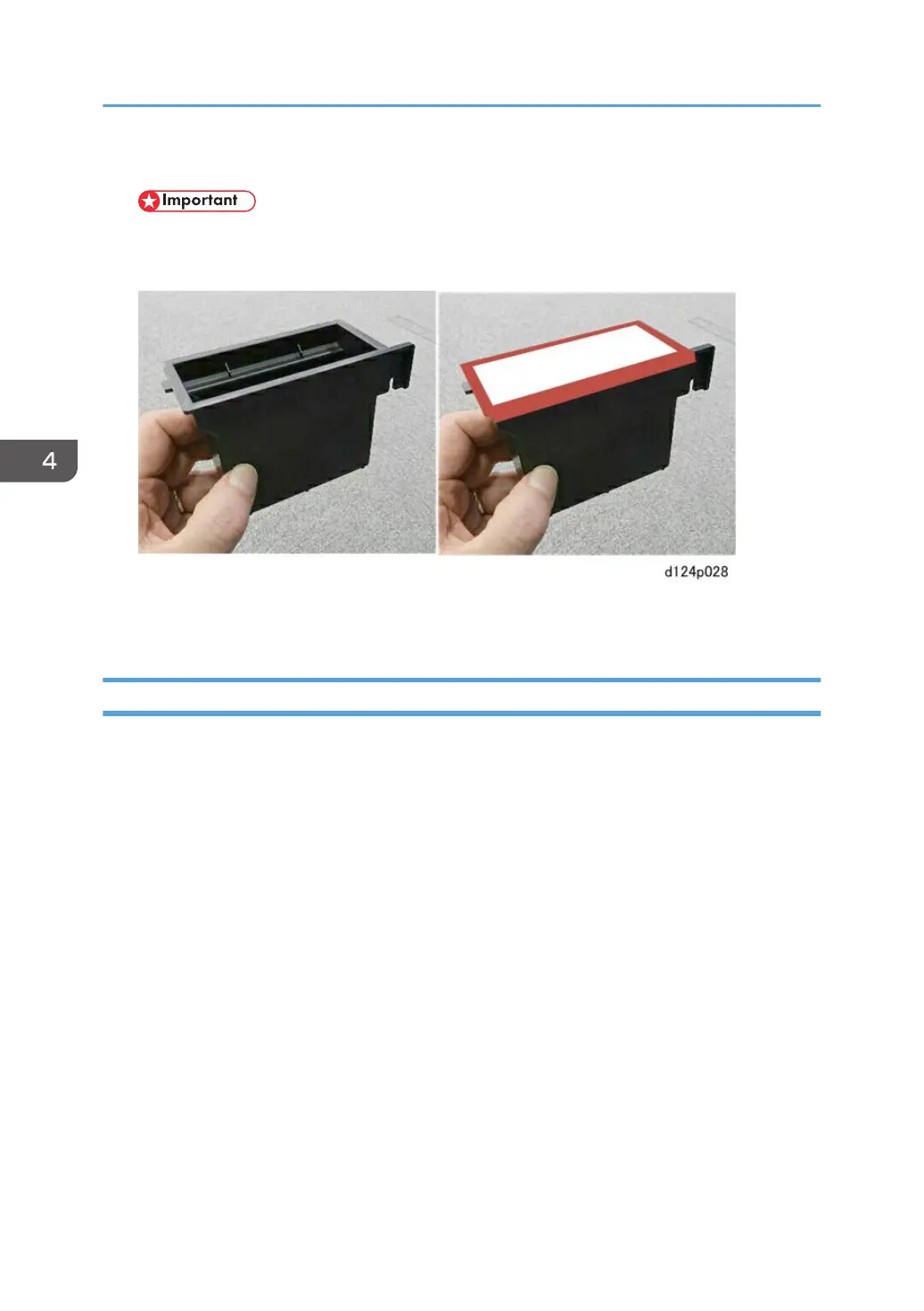

5. Cover the top of the tank with some paper and tape, and then discard it.
• Follow the local laws and regulations regarding the disposal of this item.
• Never attempt to empty the right ink sump and re-use it.
6.
After installing the new right ink sump, open SP2505-002 (Clear Counter) and touch
[EXECUTE] to clear the counter for the new sump.
Maintenance Unit
You can check the status of the maintenance unit with two counters:
• SP2-231-003 (PM Counter Indication - Maintenance Unit). Displays the status of the maintenance
unit as the amount of usage remaining (a percent).
• SP2-231-008 (PM Counter Indication - PM Counter Maintenance Unit). Displays the status of the
maintenance unit as the distance (mm) of paper fed
Preparation
• Move the Carriage Unit with SP2102-4 (p.267)
• Separate the Main Unit from the Scanner Unit (p.274)
Remove:
• Ink collector tank (p.531)
• Right cover (p.239)
• Right upper cover (p.241)
• Ink cartridge cover (p.243)
4. Replacement and Adjustment
534
To Next Page
