Cut Length (mm) Cut Tolerance (mm)
to 3000 ±27.0
to 3600 ±33.0
to 15,000 ±150
CIS Adjustment with SP Modes
To Print the CIS Adjustment Pattern
1. Enter the SP mode.
2. Open SP4-417 Pattern 3, and touch [OK].
3. Touch [COPY Window] to go to the main screen.
4. On the operation panel, select one of the rolls for paper feed.
5. Put the blank sheet of paper on the original feed tray and feed it into the original feed unit. Pattern
6 (a grid pattern) prints.
6. Touch [SP Mode] to return to the SP mode.
7. Open SP4-973, push [0] on the operation panel to change the setting from "2" to "0", then push
[#].
8. Touch [Exit] twice to leave the SP mode.
9. Select the paper input size, and then copy the grid pattern that you printed in Step 7 above.

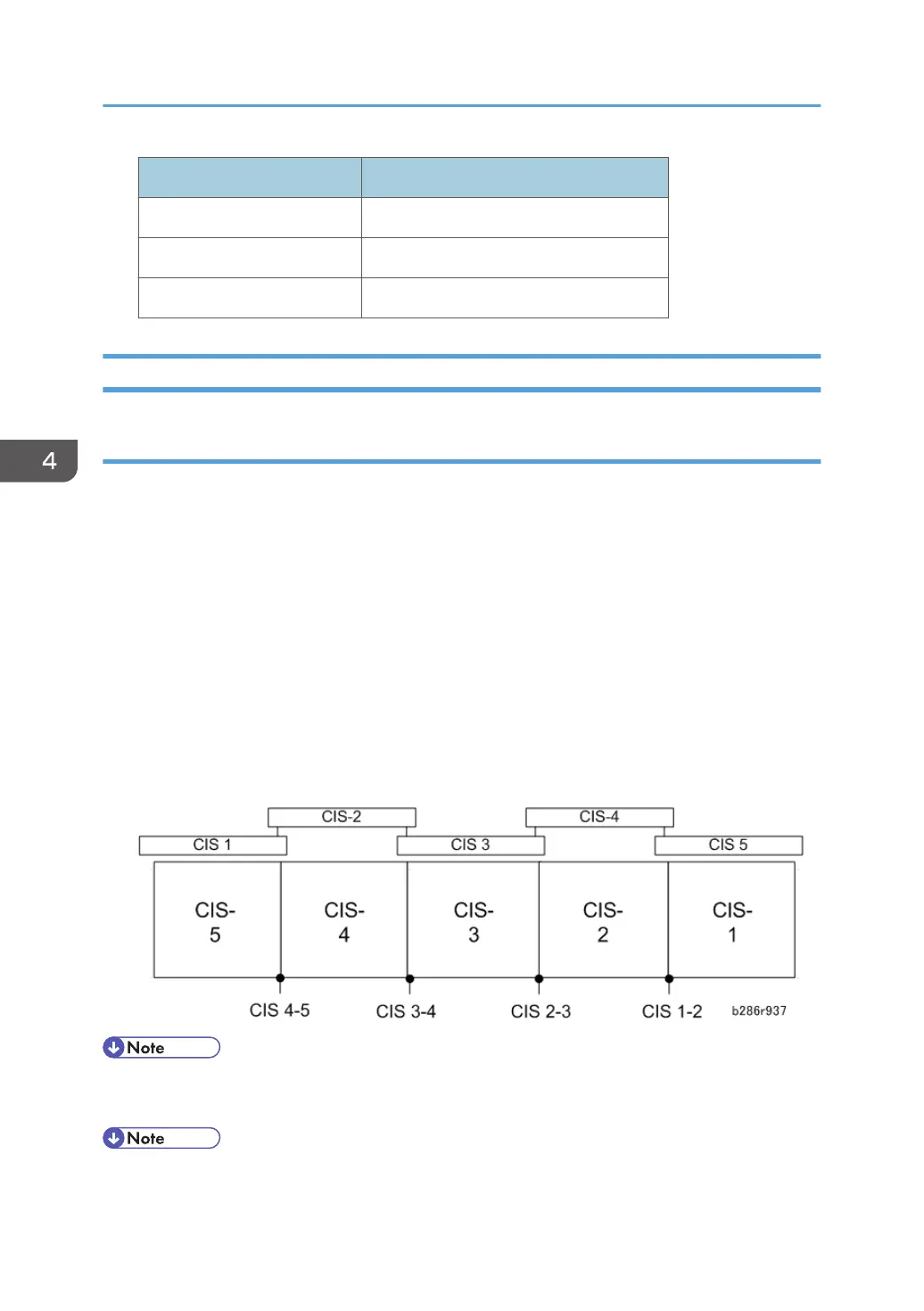

• When you look at the printed pattern, the number sequence of the CIS joints is reversed, with CIS-5
on the left through CIS-1 on the right as shown in the diagram above.
• After completing the CIS adjustments, be sure to reset SP4-973 to "2".
4. Replacement and Adjustment
586
To Next Page
