Ricoh MP CW2201 Service Manual

• Data is cached with FPGA for several bands, converted between horizontal and vertical for
each band, and are carried out down sampling.

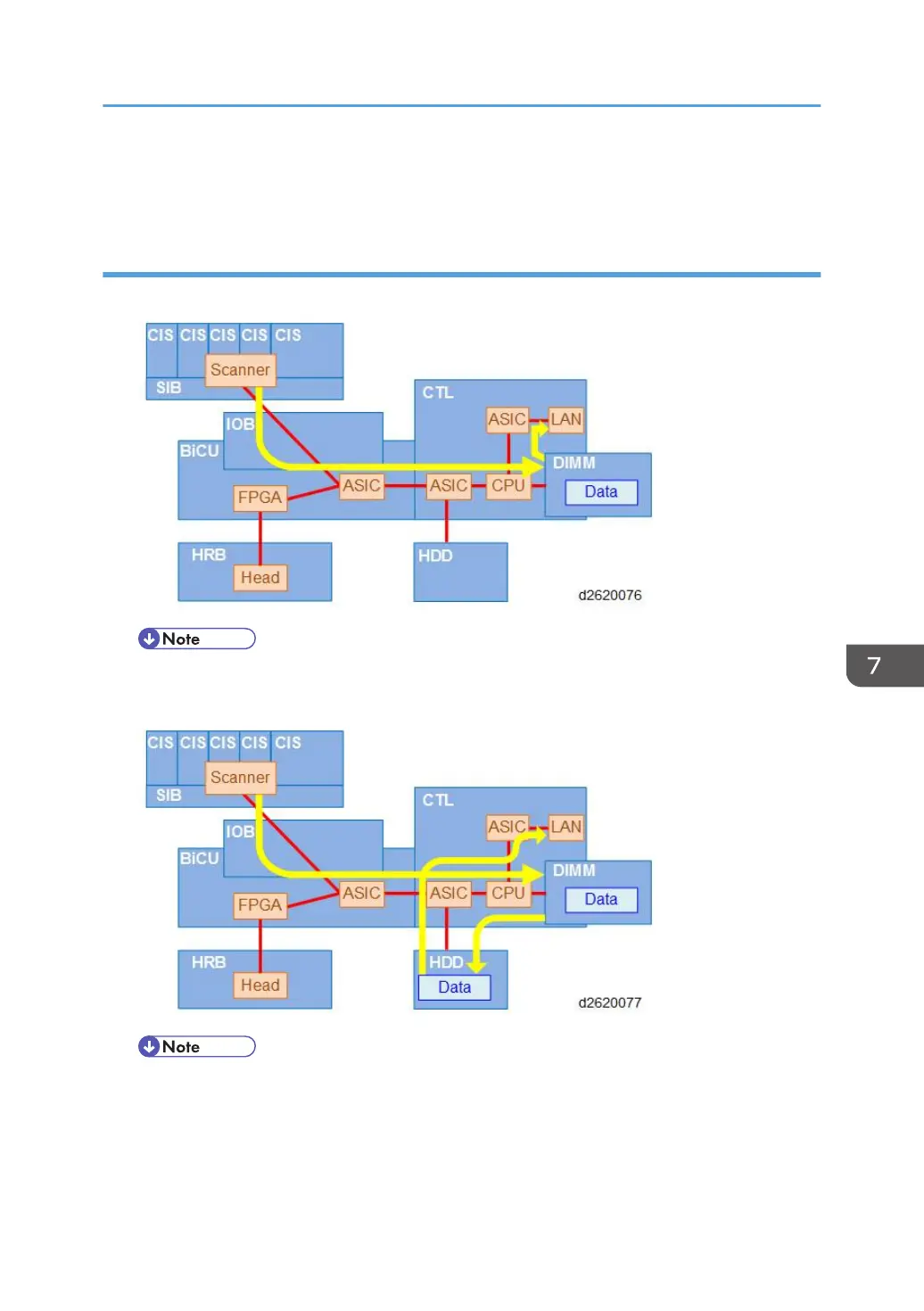

Scan Job Image Data Flow
Transfering for Each Twain Page
• The data format depends on the settings.
Delivering Data
• The data format depends on the settings.
• All data is temporarily stored on the HDD.
• Data is distributed through a LAN.
Image Processing
787

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
