Ricoh MP CW2201 Service Manual

Ink Collector Unit Contact Switch
Preparation
• Open the ink collector cover (p.243) and remove the ink collector tank (p.531)
• Remove the maintenance unit (p.534)

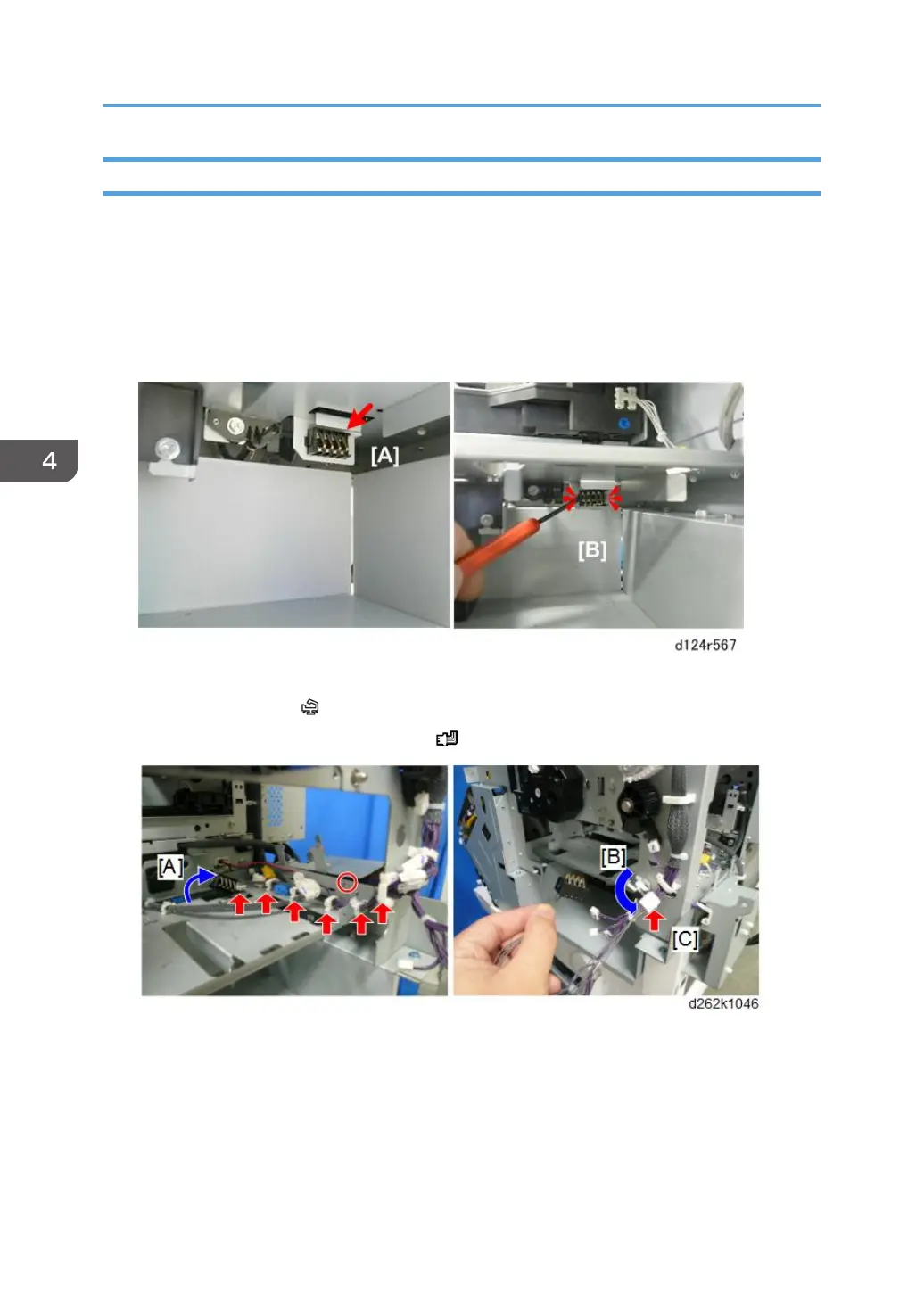

1. The sensor is located at [A].
2. Use the tip of a small screwdriver to release both sides of the sensor [B].
3. Pull the harness and sensor through hole [A].
4. Free the harness [B] ( x6).
5. Disconnect and remove the sensor [C] ( x1).
Reinstallation
4. Replacement and Adjustment
532
