Ricoh MP CW2201 Service Manual

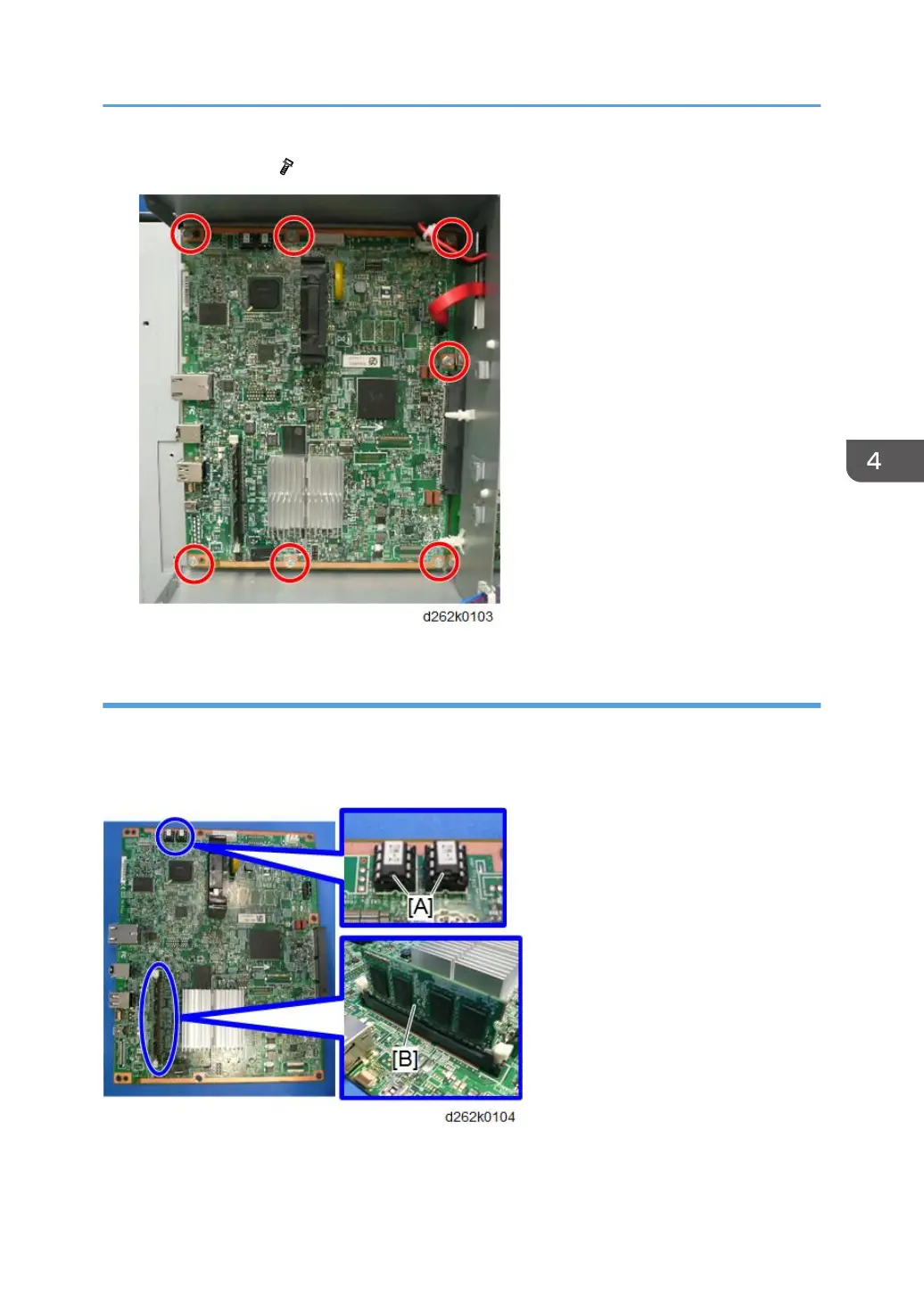

3. Controller board ( x7).
Replacing the NVRAM and Memory
If you are going to replace the controller board, remove the NV-RAM [A] from the old controller board
and mount it on the new controller board.
Also mount the memory [B] on the new controller board.
Electrical Components
555

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
