Ricoh MP CW2201

To Next Page

To Previous Page

Right Cover

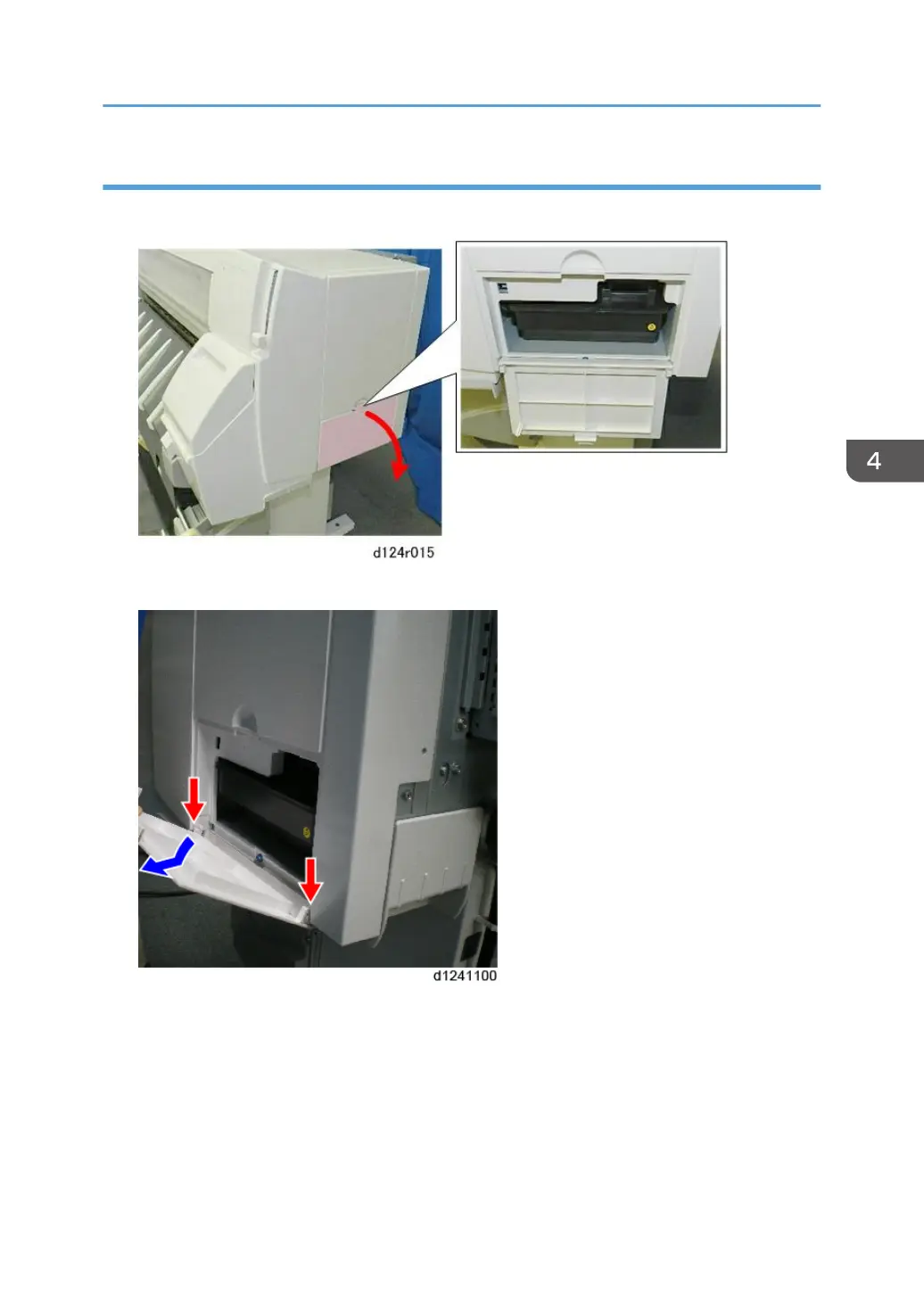

1. Open the ink collector cover.

2. Disconnect the hinges on both ends of the cover and remove it.

Common Procedures

239
