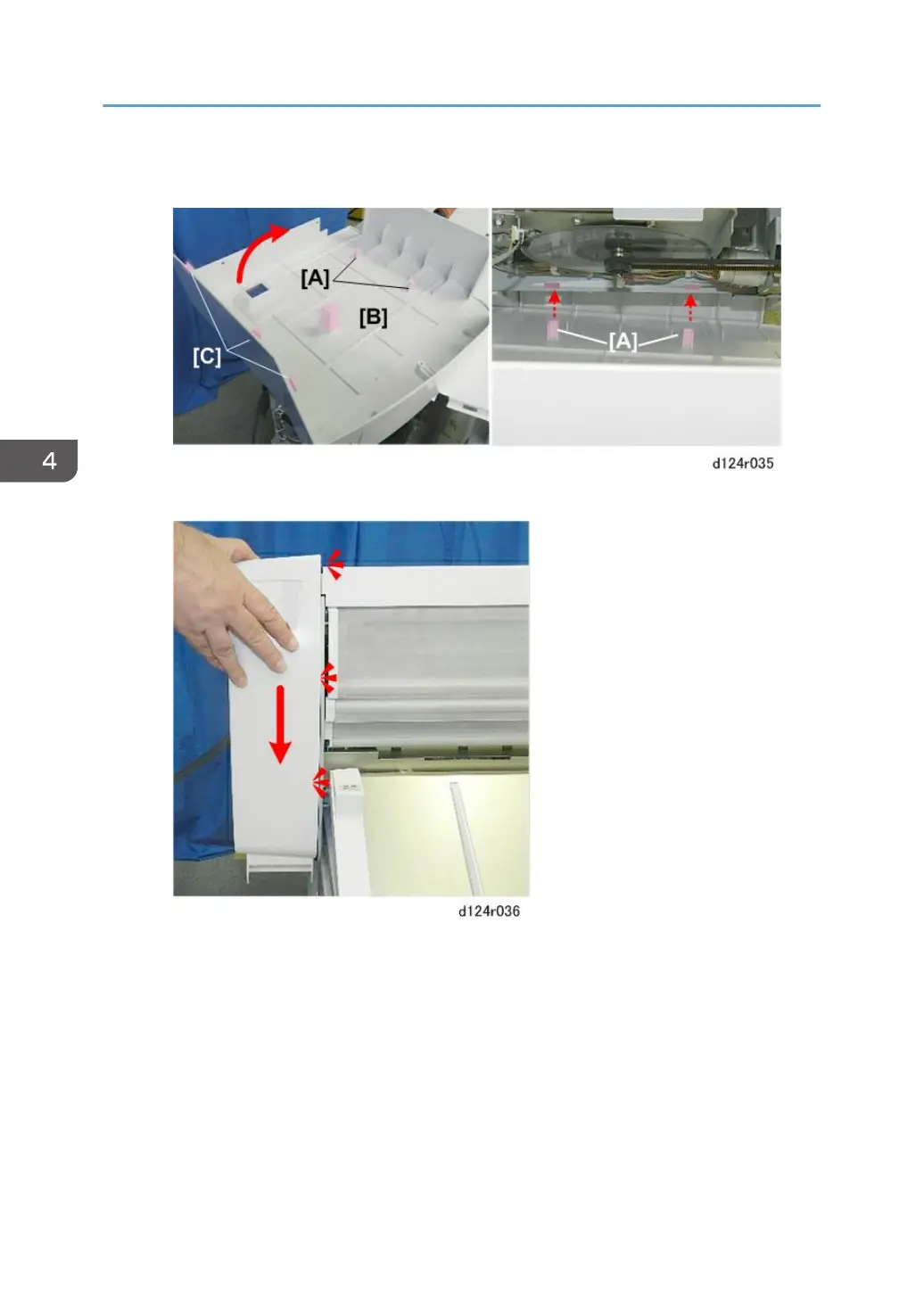

3. Insert the tabs [C] on the top edge of the cover into their holes.

4. Lower the cover so that the hooks and tabs engage the machine frame.

4. Replacement and Adjustment

238
