Ricoh MP CW2201 Service Manual

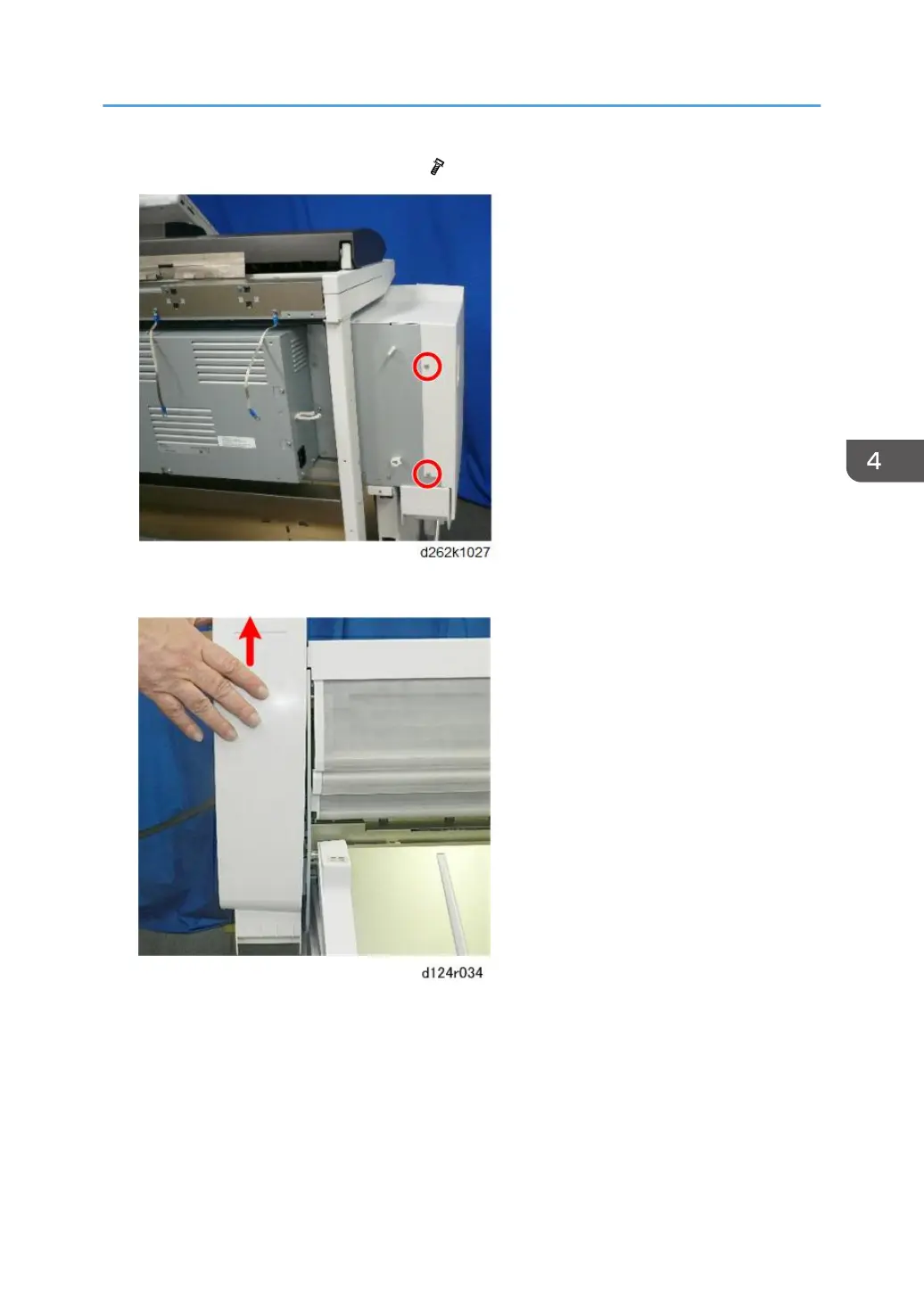

7. At the back, disconnect the left cover ( x2).
8. Lift the cover straight up and remove it.
Reinstallation
1. Set the bottom hooks [A] into the holes in the frame.
2. Raise the cover so that the middle hook [B] fits into its hole.
Common Procedures
237

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
