Ricoh MP CW2201 Service Manual

Precaution

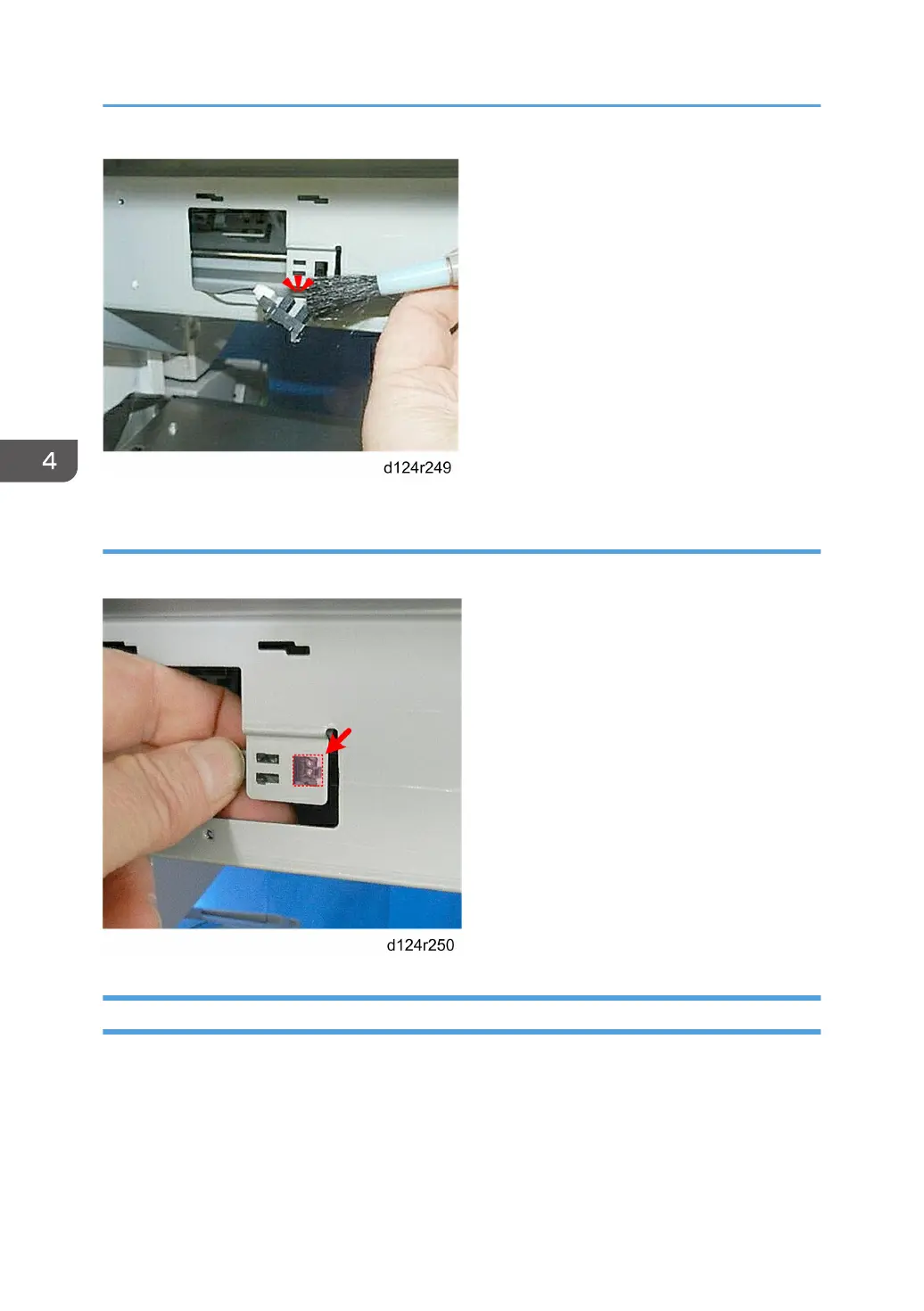

To install the roll end sensor, attach the claw first.
Feed Roller Housing
The feed roller housing must be separated from the roll feed unit when removing the paper entrance
sensors, exit sensor, and roll feed roller.
The procedure to separate the roller housing is slightly different between roll unit 1 and roll unit 2. Roll
unit 1 [A] has no top cover while roll unit 2 [B] has a top cover.
