Ricoh MP CW2201 Service Manual

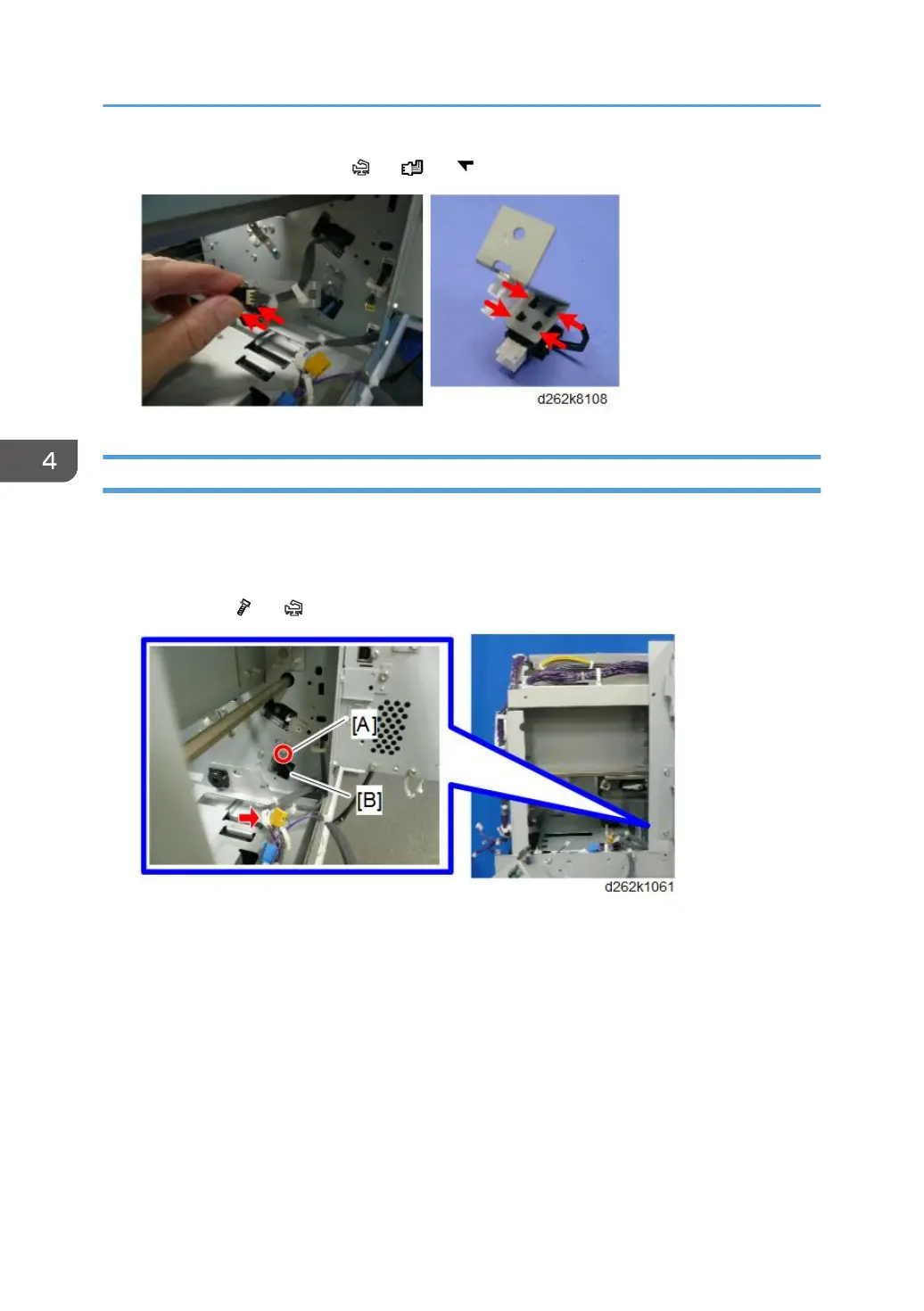

5. Remove the bypass sensor ( x1, x1, x4)
Pre-Registration Sensor
1. Remove the right rear cover (p.247).
2. Remove the auto-nozzle check unit (p.540).
3. Disconnect the pre-registration sensor with the bracket [A] and push it into the hole in the
bracket [B] (
x1, x1).
4. Replacement and Adjustment
362
