Ricoh MP CW2201 Service Manual

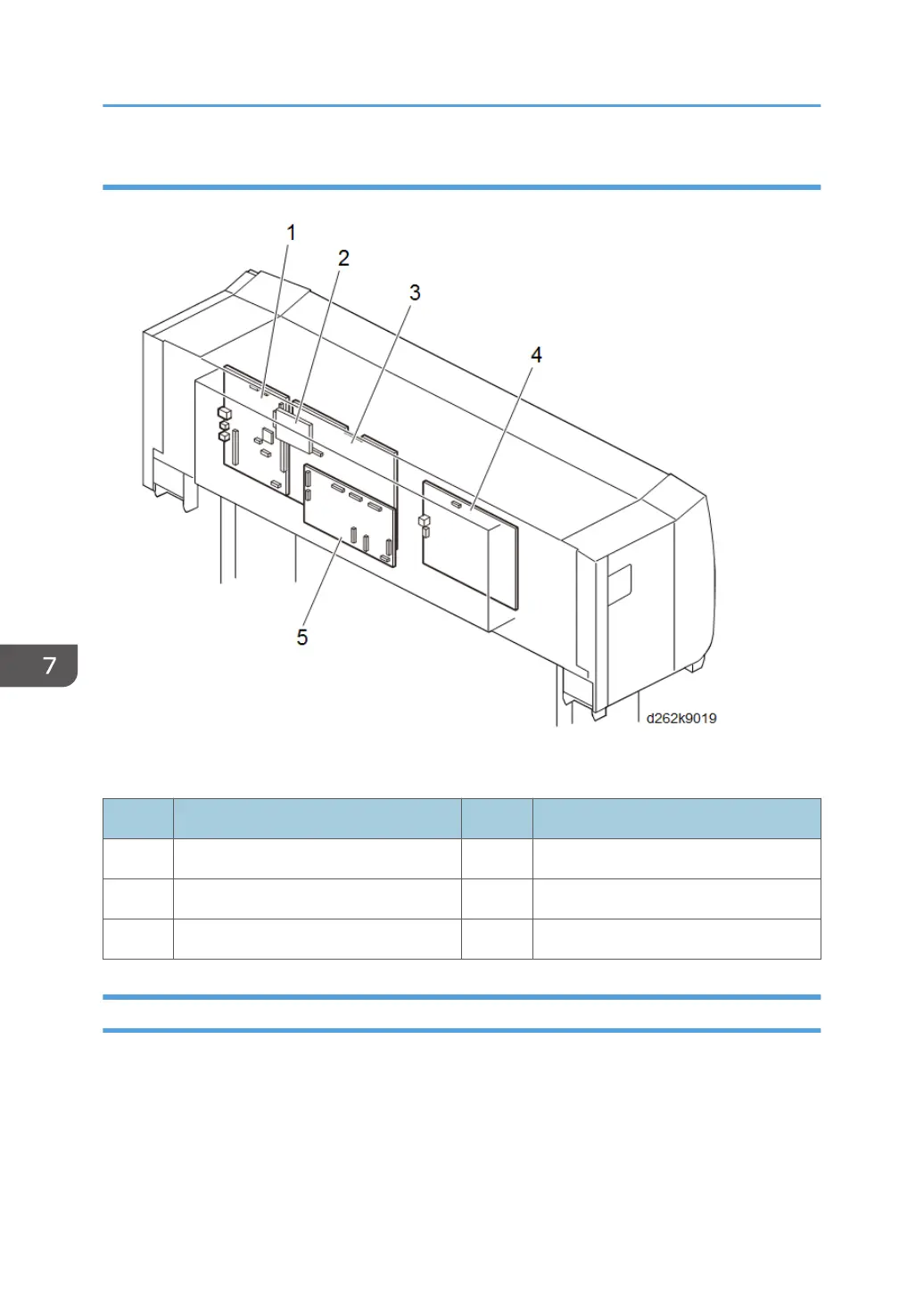

Parts Layout
No. Component No. Component
1 Controller Board 4 PSU
2 HDD 5 IOB
3 BiCU
SIB (Scanner I/F Board)
The SIB is located at the left back of the scanner unit. It controls the CIS, scanner motor, and sensors on
the scanner motor, and relays the signals.
The CIS reads image data, which are then converted from analog to digital and sent to the BiCU.
7. Detailed Description
888

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
