Ricoh MP CW2201 Service Manual

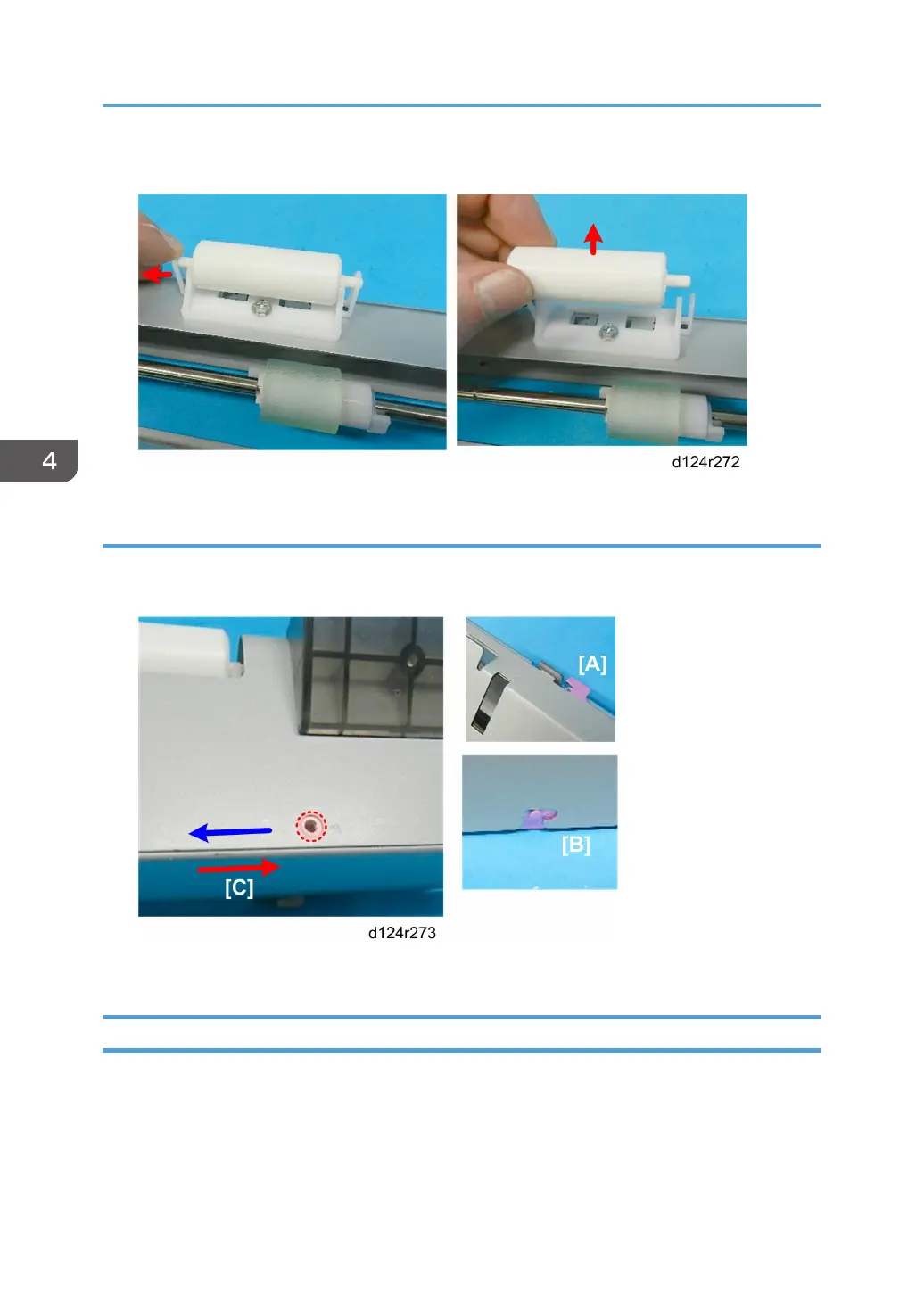

5. Remove the idle rollers by opening a support on either side.
Precaution
• To re-assemble the feed roller housing and cover plate, match the hooks [A] and bosses [B] with
their contact points, and then press the halves in the opposite direction [C].
• The holes align when the halves are locked correctly.
Roll End Sensor
1. The roll end sensors are located on the roll unit 1 [A] and roll unit 2 [B].
To remove the roll end sensor on the roll unit 1, raise the paper exit guide.
4. Replacement and Adjustment
358

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
