Ricoh MP CW2201 Service Manual

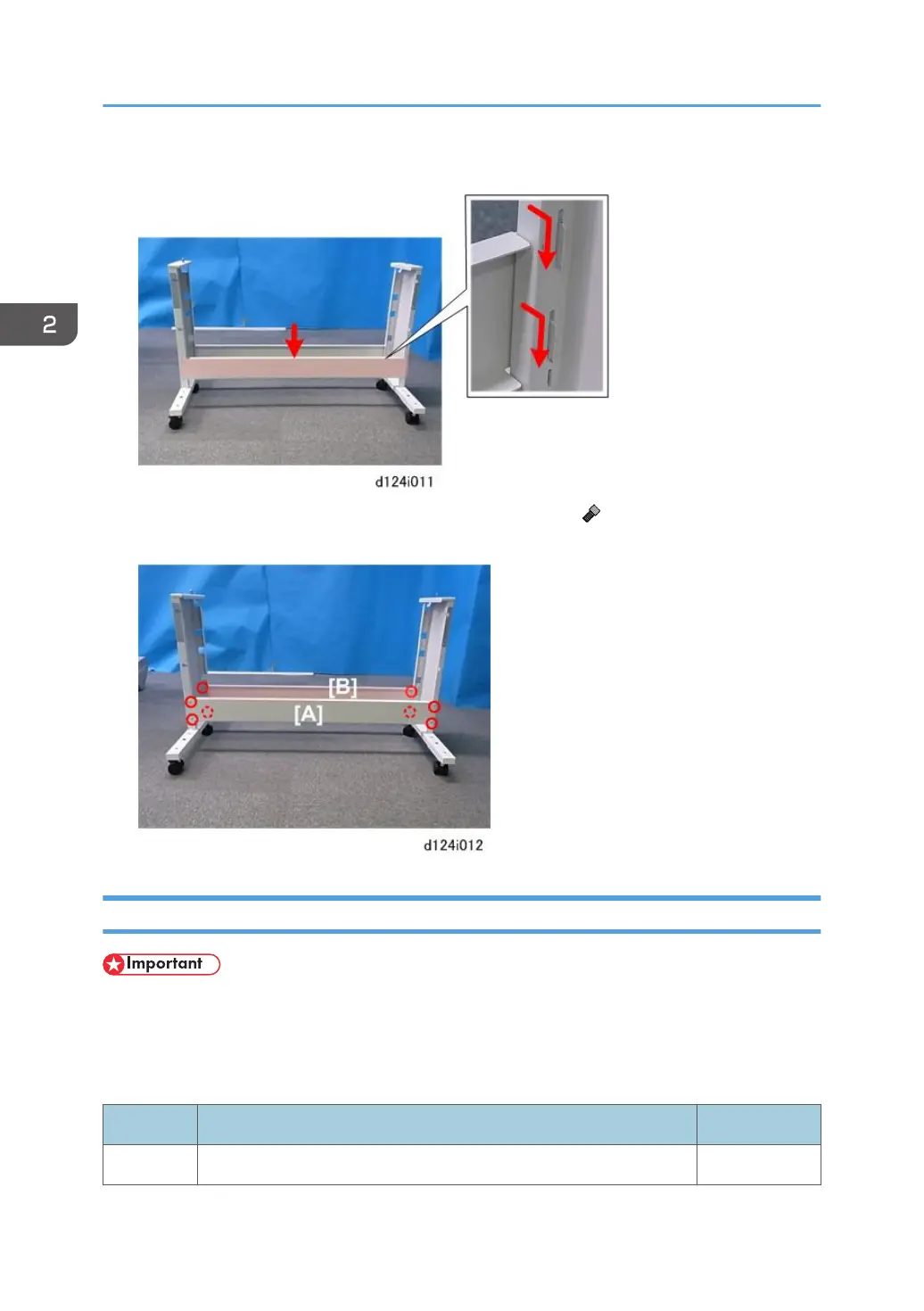

4. Push down the front and rear stays to lock them in place.
5. Fasten the front stay [A] and rear stay [B] to the supports ( x4 each). You will need the
Allen key to attach the hex socket bolts.
Mounting the Main Unit
• Mount the main unit immediately after you have removed the box from the pallet and opened the
box.
• To avoid damage to the bottom of the main unit, do not set the main unit on the floor.
Parts to be Used
No. Item Q'ty
- Hex Socket Bolt*
1
3
2. Installation
70

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
