Page #75 background imageLoading...
Page #75 background image

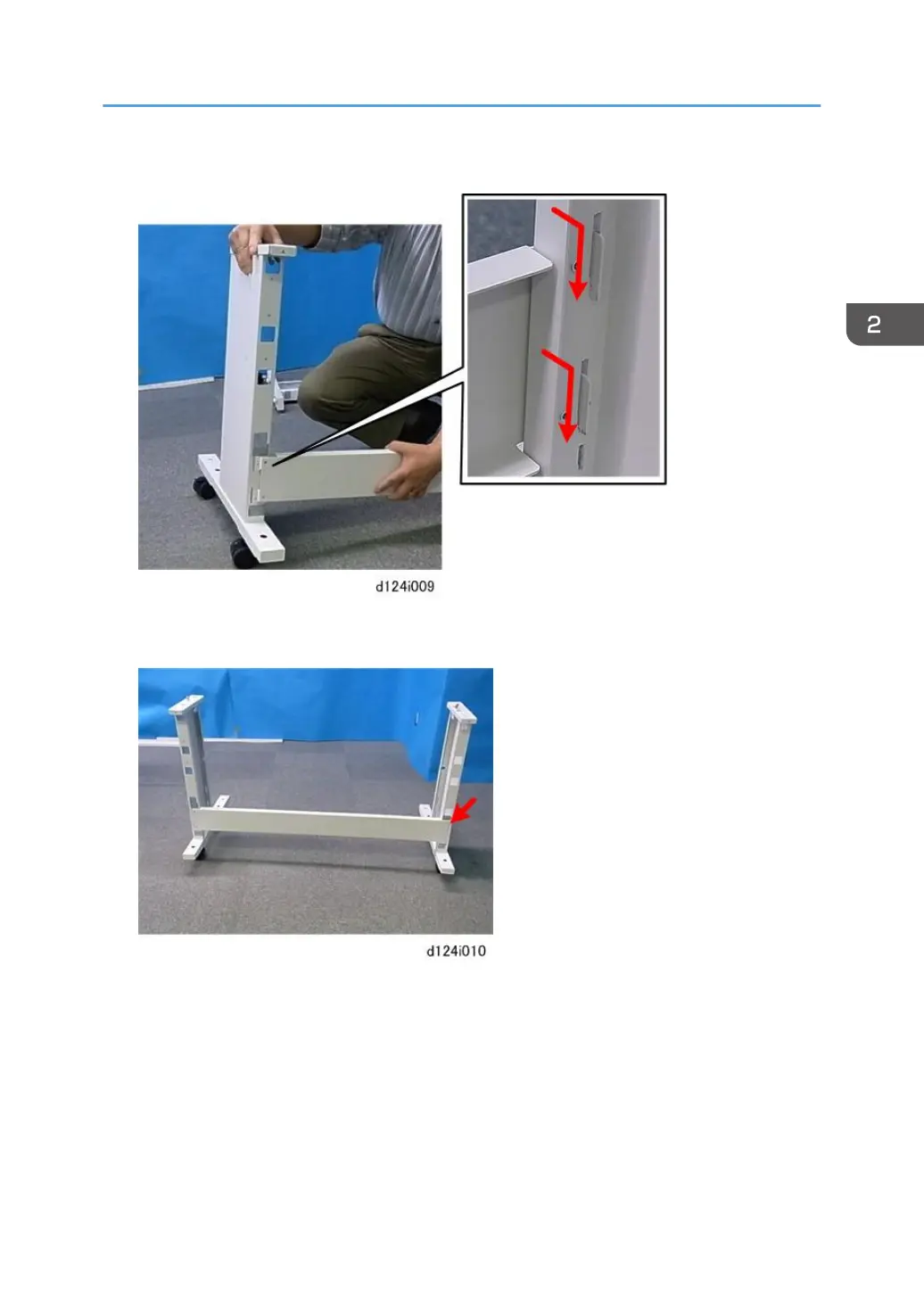

1. While holding the right support, latch a stay to the rear of the base of the support.
2. Attach the other end of the stay to the rear of the base of the left support so the supports
can stand upright by themselves.
3. Latch the other stay to the front of the bases of the left and right supports.
Main Machine Installation
69

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Ricoh MP CW2201 and is the answer not in the manual?

Ricoh MP CW2201 Specifications

General IconGeneral
Color PrintingYes
Scan Resolution600 dpi
Standard InterfacesEthernet, USB
Paper SizeA4
Operating SystemsWindows
Power SourceAC 100-240V, 50/60Hz
