Ricoh MP CW2201 Service Manual

Image Flow

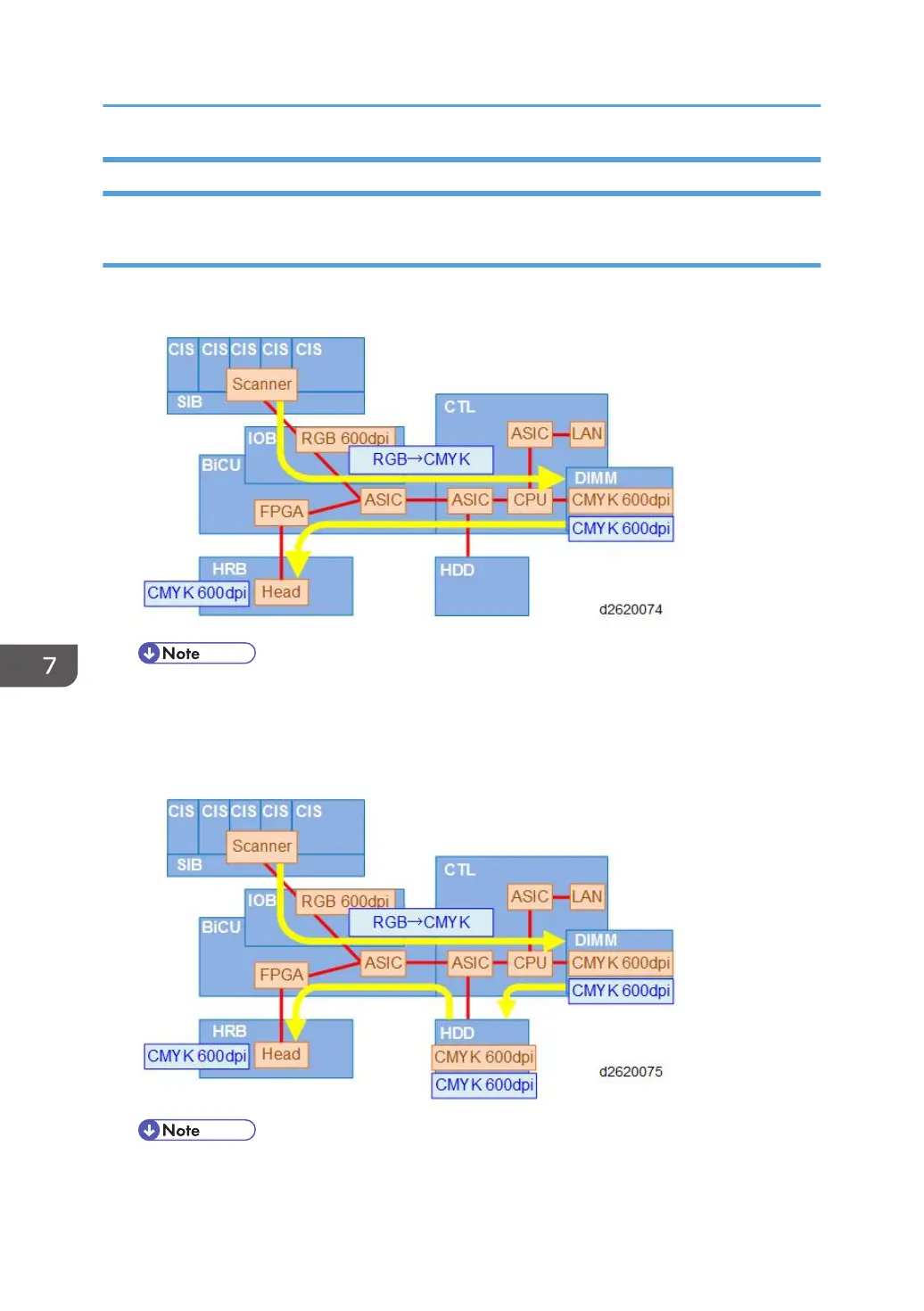

Copy Job Image Data Flow
For Multiple Copies of an Original of A1 or Smaller for Monochrome or A2 or Smaller for
Color
• Data do not go to the HDD but are stored in DIMM only.
• Data is cached with FPGA for several bands, converted between horizontal and vertical for
each band, and are carried out down sampling.
For Other Size or Multiple Originals
• Data is stored on the HDD.
7. Detailed Description
786
