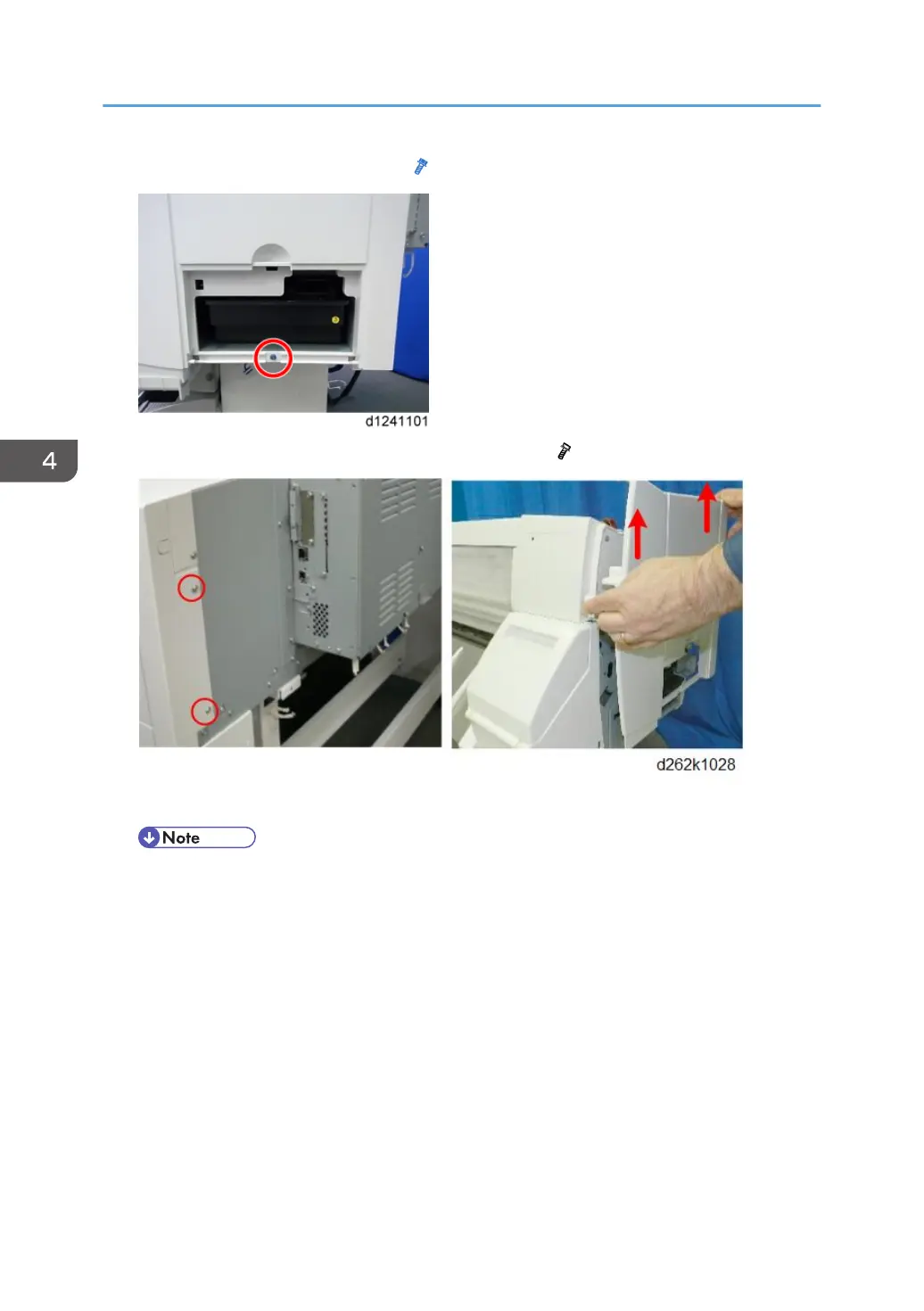

3. Disconnect the bottom of the cover ( x1).
4. At the back of the machine, disconnect the right cover ( x2).
5. Lift the cover straight up and remove it.
• Raise the right cover [A] and pull it toward you to remove.
• To raise the paper holding lever [B] for removing the right cover, do not raise the lever too
much, which might disengage it from the gear.
