Ricoh MP CW2201 Service Manual

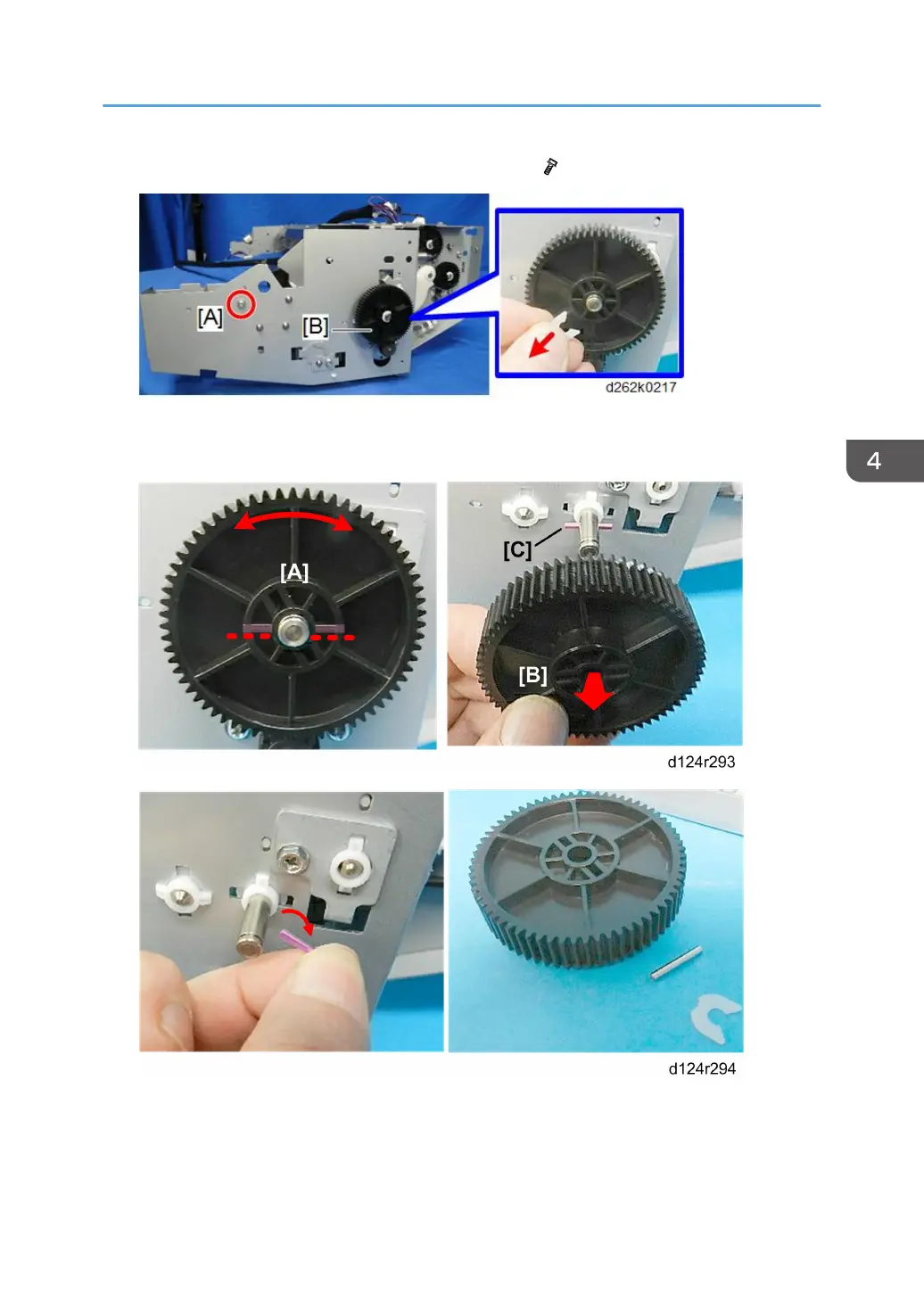

6. Remove the screw [A] and snap ring of the gear [B] ( x1, snap ring x1).
7. Turn the gear until the alignment mark [A] is horizontal.
8. Remove the gear [B] and alignment pin [C].
Roll Units
337
