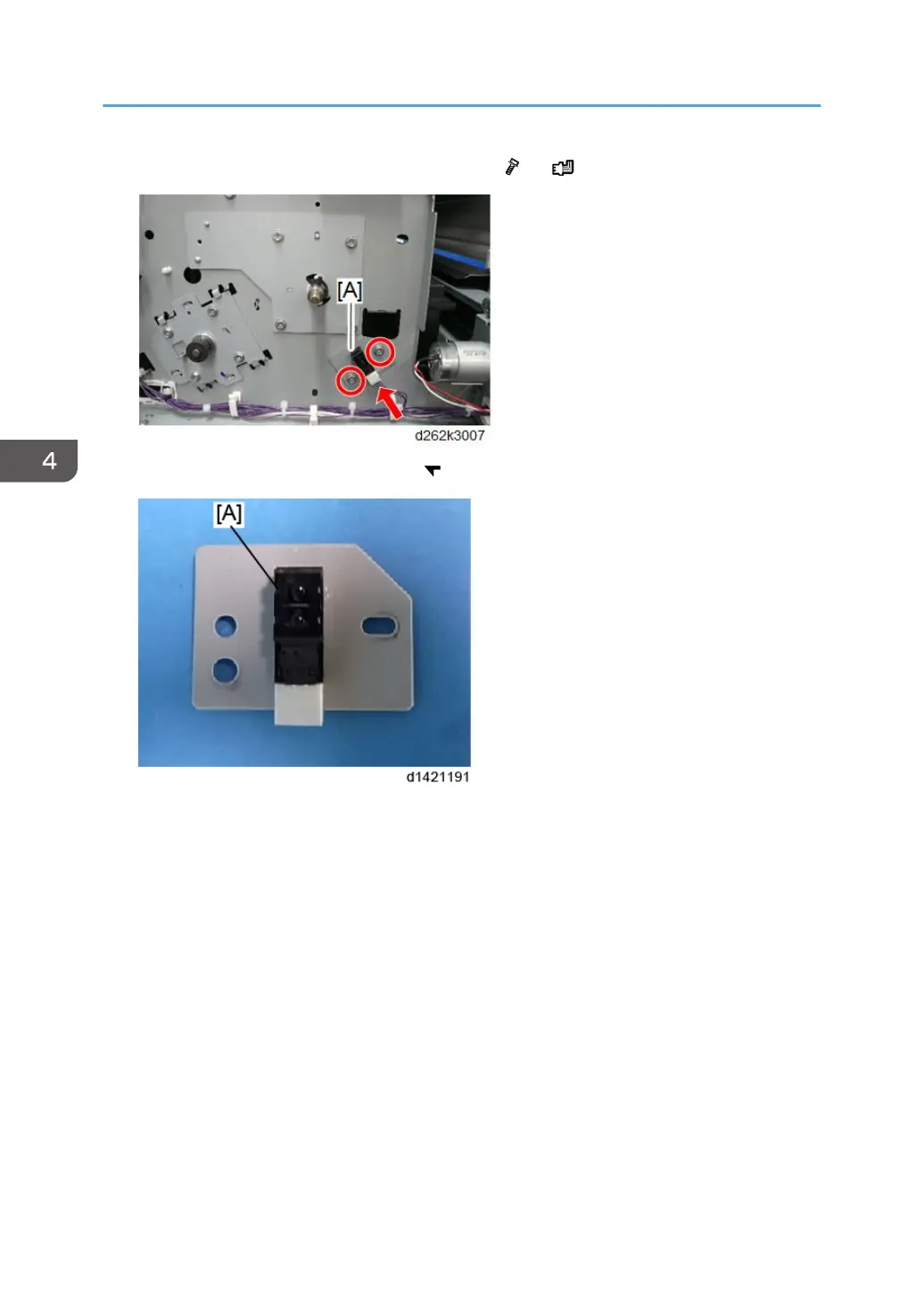

1. Remove the sensor with the sensor bracket [A] ( x2, x1).

2. Separate the bracket and sensor [A] ( x4).

Reinstallation
