Ricoh MP CW2201

To Next Page

To Previous Page

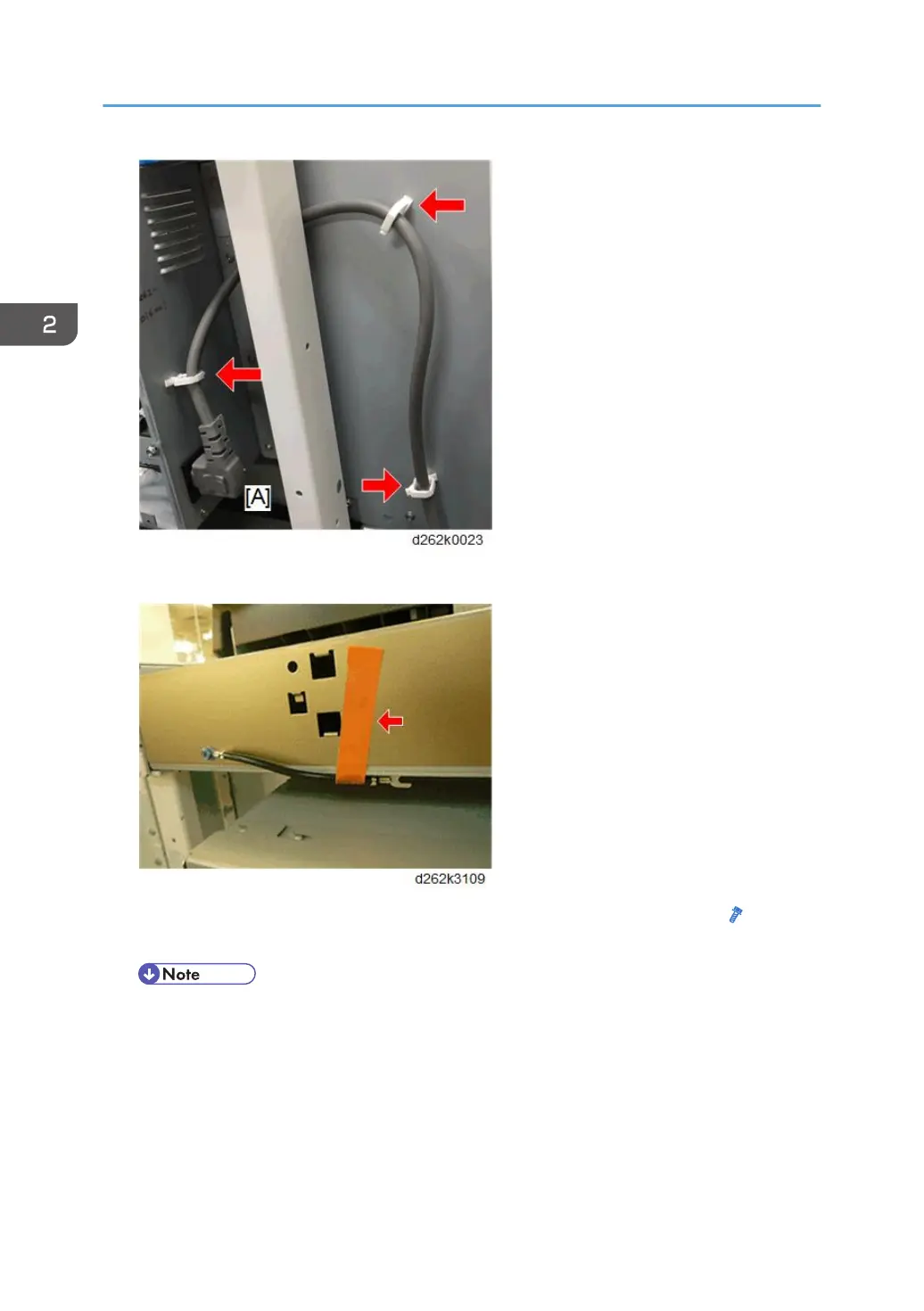

3. Remove the filament tape.

4. Connect the ground harnesses of the scanner unit to the back of the machine ( x3

M3x6).

• Be sure to connect the ground harnesses securely. Otherwise the normal image may not be

obtained on copying or scanning.

2. Installation

112

Main Page
