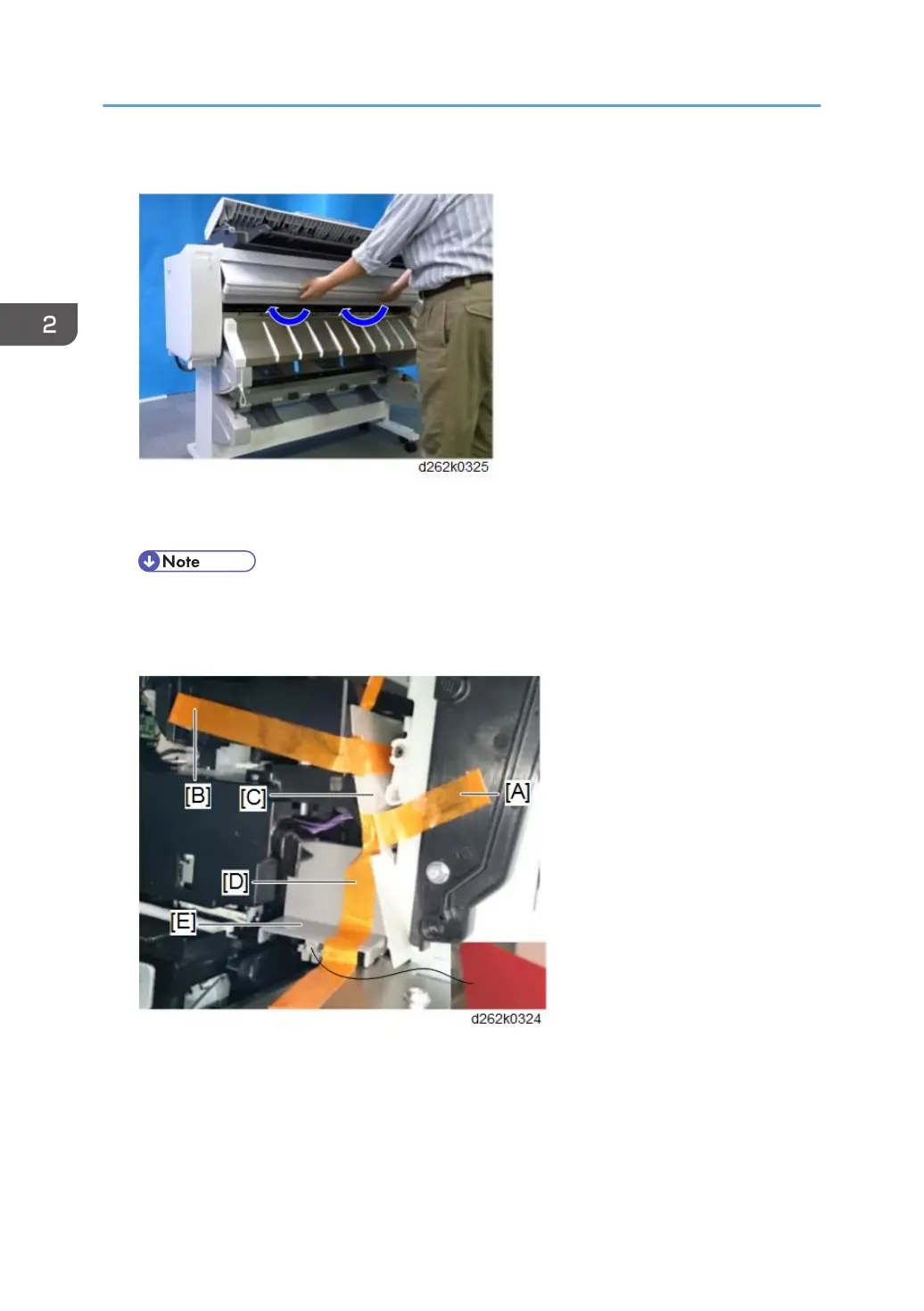

Fold the bottom of the cover into the machine so that it locks and remains open.
4. Remove the tape and other materials attached to the inside of the machine. Remove the
tape [A], tape [B], film sheet [C], tape [D], and GAP protective material [E] in this order.
• When removing the tapes, never touch the horizontal encoder sheet.
• Never pull out the red tag. If it is pulled out forcibly, the carriage left cover is removed that
causes the damage to the carriage unit.
Remove the tape [A] with protective material [B] for ink tubes.
2. Installation
114
