Ricoh MP CW2201 Service Manual

[E] BICU CN216
[F] BICU CN215
[G] Ground Clamp

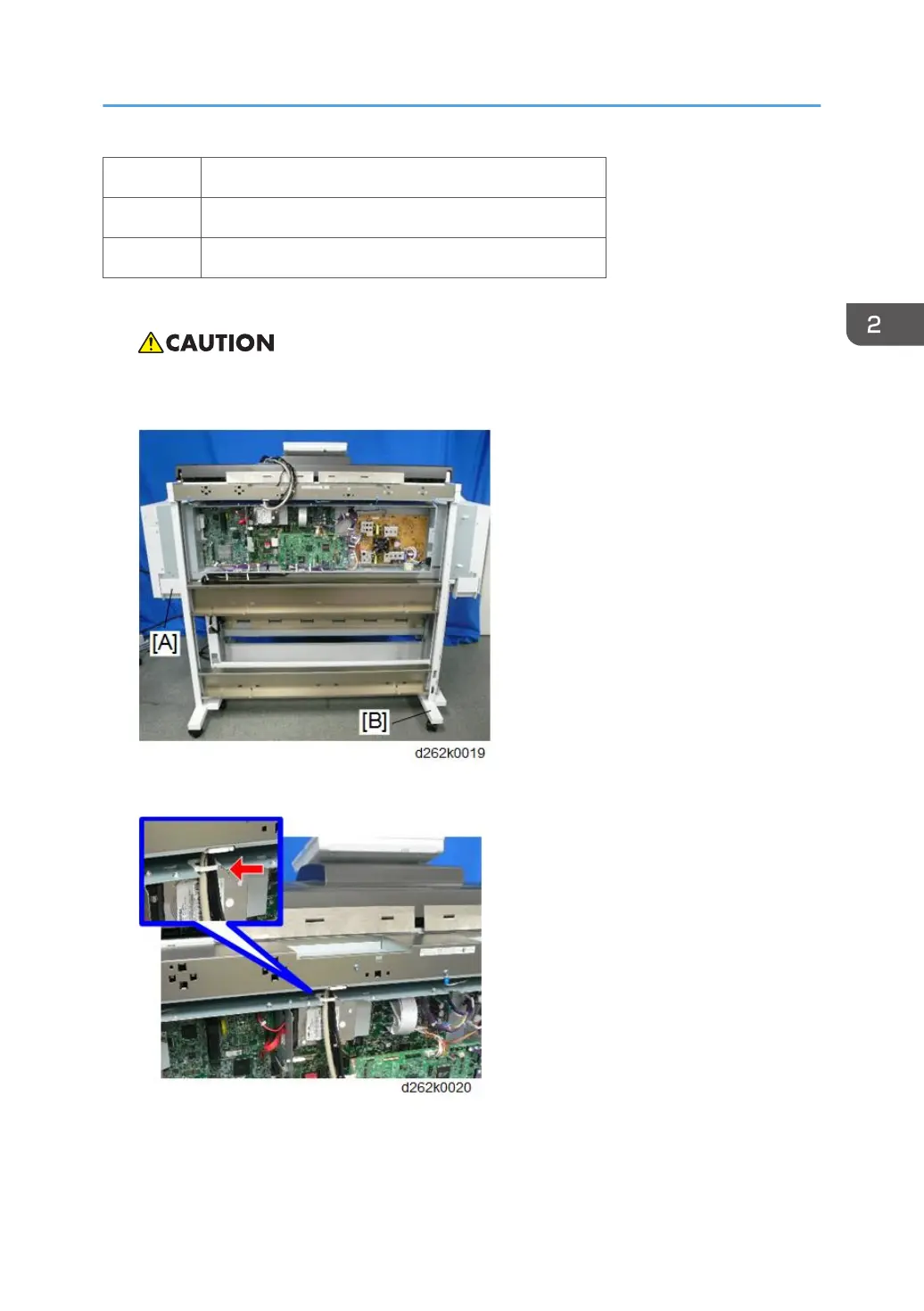

1. Place the scanner unit [A] and main unit [B] as shown below.
• The scanner unit is top heavy and unstable. It can fall over easily. Grip the supports below the
scanner unit and push it slowly when you move it.
2. Clamp the scanner cable to the machine.
Main Machine Installation
107
