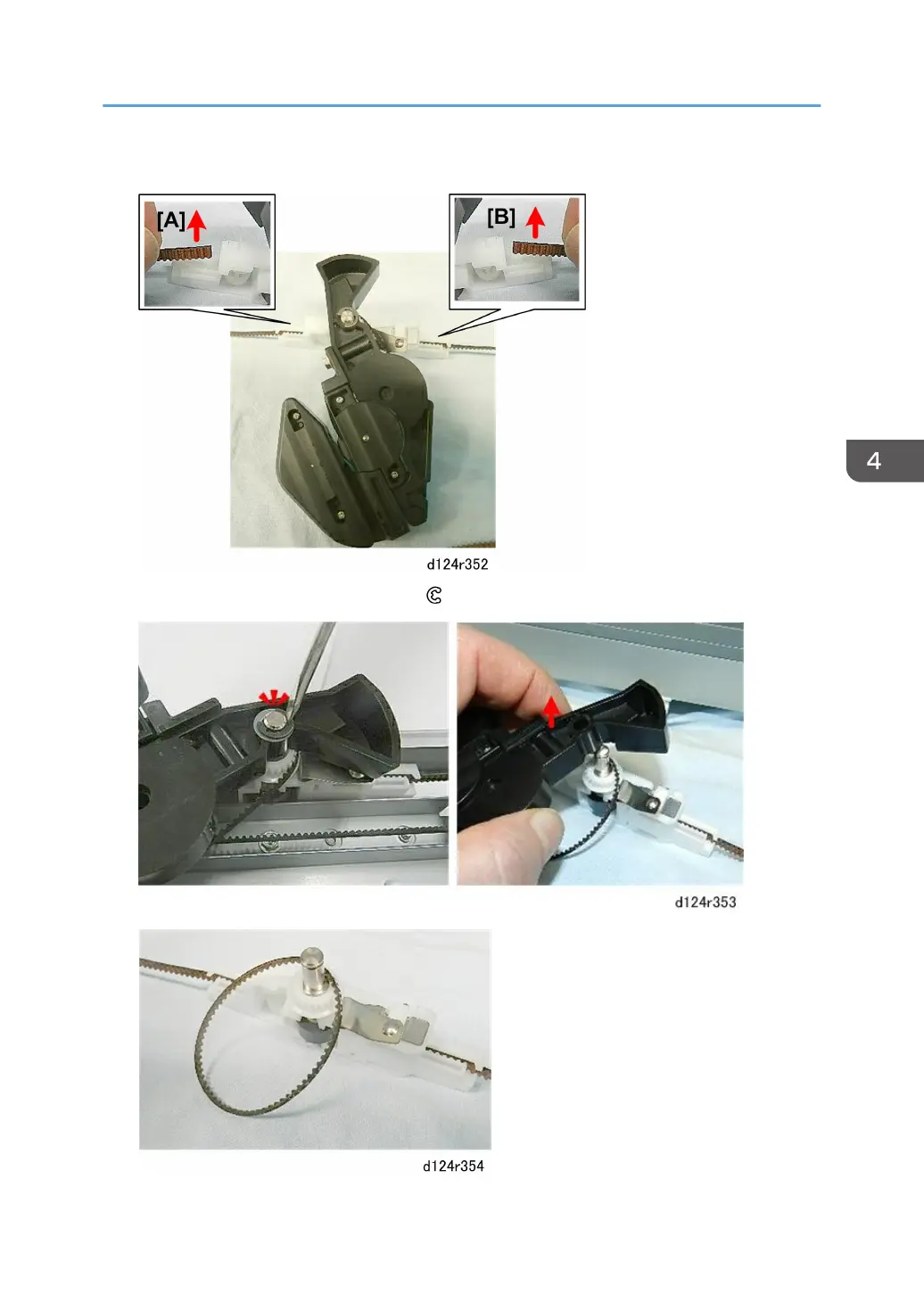

6. Disconnect each end of the timing belt [A] and [B] from the cutter.

7. Cutter from the cutter belt drive gear ( x1, spacer x1).
