Ricoh MP CW2201 Service Manual

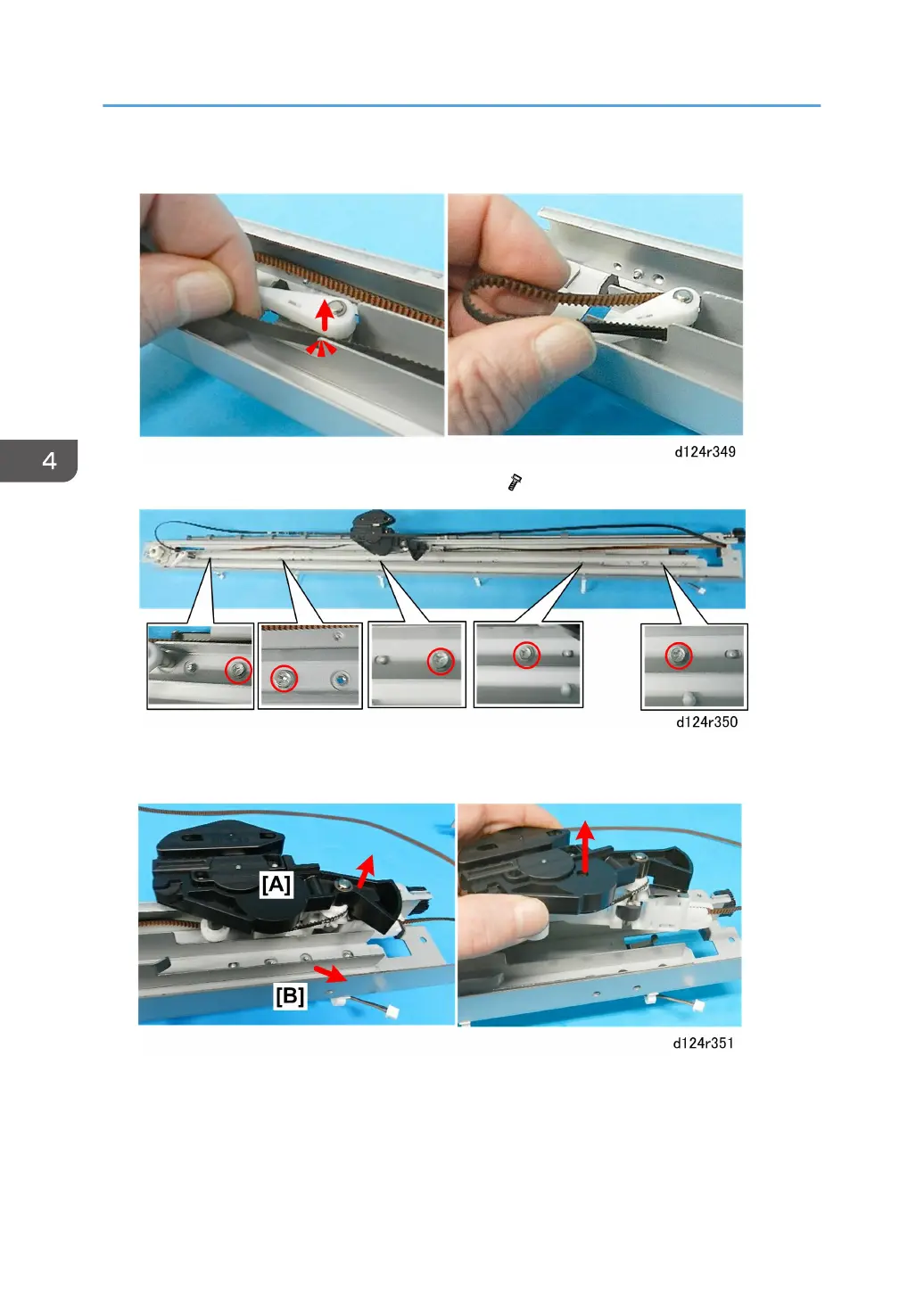

3. Disengage the timing belt from the flapper of the cutter unit.
4. Disconnect the race from the cutter unit bracket ( x5).
5. Push the cutter [A] all the way to the right, pull the rail [B] up slightly, and then remove
the cutter.
4. Replacement and Adjustment
376
